Irrometer 1001 Service Kit, Standard for R/SR/LT

Service Units are designed to aid users in the placement and installation, interpretation of readings, and maintenance of IRROMETER soil moisture indicators. Several helpful items are included in the kit. The primary component of a Service Unit is a small hand vacuum pump. The pump is designed to seal on the reservoir portion of the instrument body and is used to create a vacuum manually, evacuating any air contained in the tensiometer. These instruments function with the greatest accuracy when all air has been removed. One Service Unit will service multiple instruments. The standard pump included with the #1001 Service Unit is used for most applications.

Features:

• Designed for outdoor field use
• Non-corrosive construction
• Easily serviceable
• Long lasting
• PUMP BODY MATERIALS:
  • Anodized aluminum tube and shaft;
  • rubber end fittings,
  • plunger,
  • suction cup and finger valve;
  • plastic knob and coupling;
  • nylon ball
• DIMENSIONS:
  • Compressed - 10.375 in. (26.35 cm)
  • Fully Extended - 15.5 in. (39.37 cm)
  • Suction Cup Diameter - 2.25 in. (5.715 cm)
  • Tube Diameter - 1.25 in. (3.175 cm)
• WEIGHT: 1.07 lb. (.484 kg)

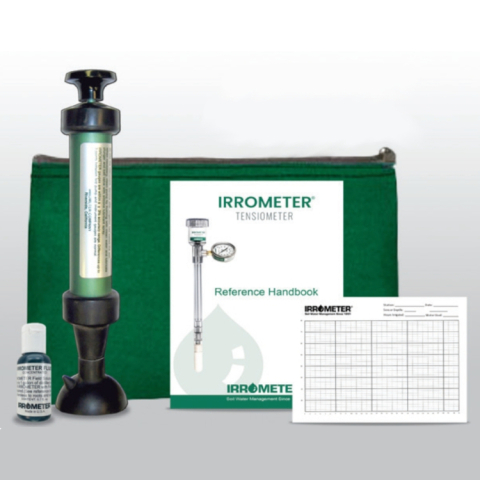

Includes:

• hand vacuum pump,
• pad of 4.5 x 6.25 in. (11.43 x 15.87 cm)
• chart forms,
• 1 fluid ounce (29.57 cc) bottle of IRROMETER Fluid (concentrated dye)
• copy of IRROMETER's Moisture Indicator Reference book.
• Canvas Bag
