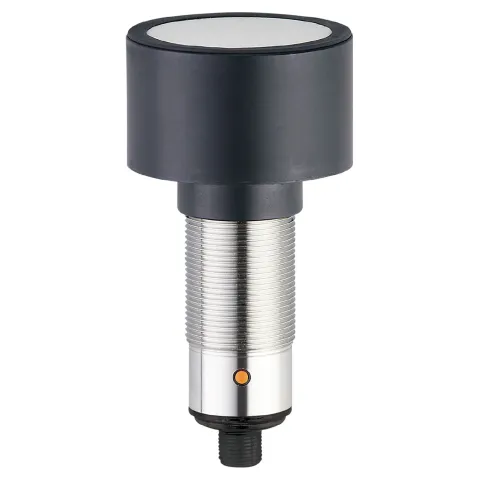

IFM UIT516 Ultrasonic Sensor, NPN, Normally Open / Closed, 1 x M12, Coding A, 600-8000 mm Setting Range, Target 1000 x 1000 mm

Features:

• Very large detection range
• Intuitive setting of the detection range via pushbutton
• Clearly visible LED for indicating switching status and echo
• With programmable switching output and scalable analog output
• Non-contact detection independent of color, transparency or surface characteristics of the object

For more information, please see Data Sheet

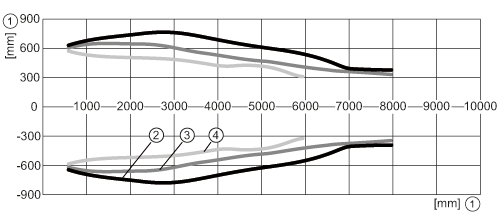

Diagrams and graphs

1 Distance 2 Standard sound cone 3 Medium sound cone 4 Narrow sound cone
