IFM OGH701 Laser Diffuse Reflection Sensor

Features:

• Reliable detection of tiny objects
• Robust stainless steel housing for use in harsh industrial environments
• Laser protection class 1
• Visible red light for simple alignment
• Precise background suppression

For more information, please see Data Sheet

Diagrams and graphs

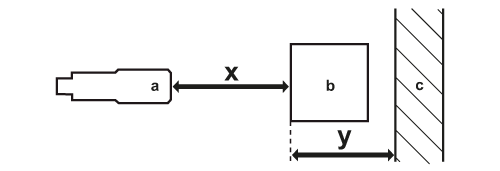

	a: sensor b: object c: background x: distance sensor/object [mm] y: min. distance object/background [mm]

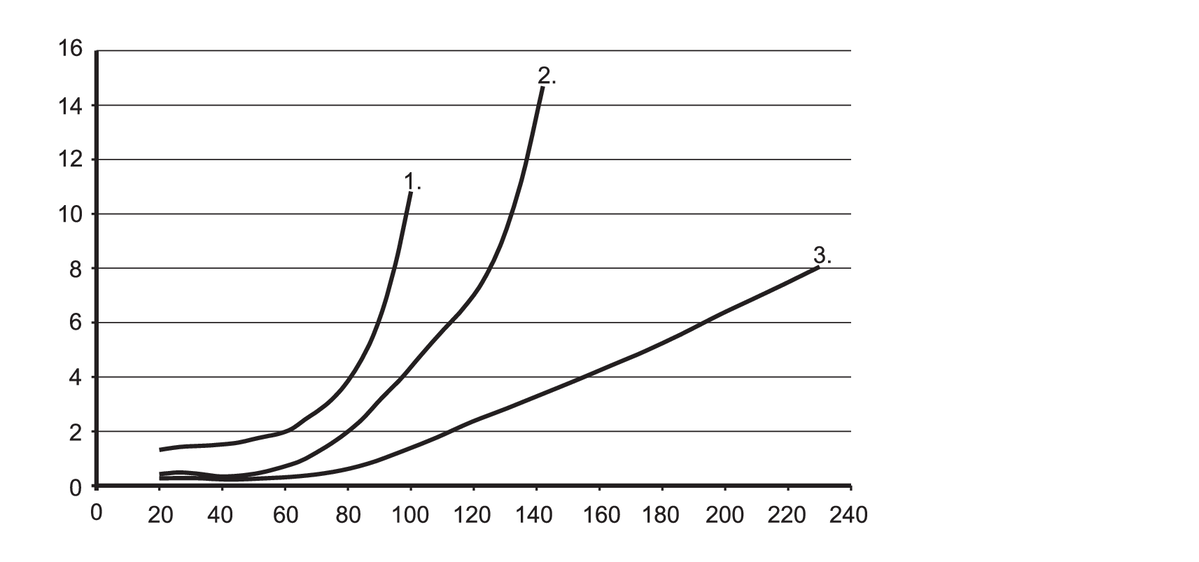

	x: distance sensor/object [mm] y: min. distance object/background [mm] 1 = object black (6 % remission) , Background white (90 % remission) 2 = object grey (18 % remission) , Background white (90 % remission) 3 = object white (90 % remission) , Background white (90 % remission)
