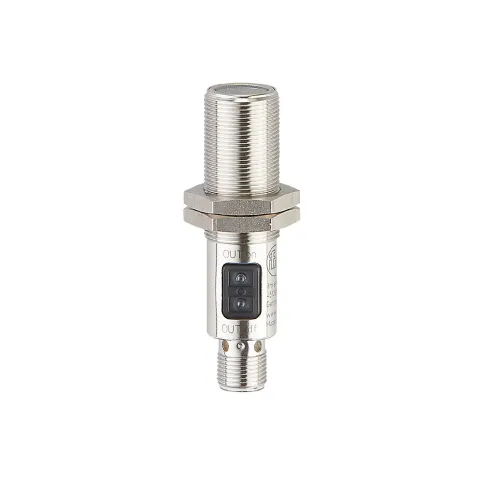

IFM OGH500 Diffuse Reflection Sensors with Background Suppression, PNP, M18 x 1 mm, Length 72 mm, Programmable Light-on/Dark-on Mode

Features:

• Robust stainless steel housing for use in harsh industrial environments
• Precise background suppression
• Intuitive sensitivity adjustment with pushbutton
• Programmable light-on/dark-on mode
• Wide range of fixing components for quick and easy mounting

For more information, please see Data Sheet

Diagrams and graphs

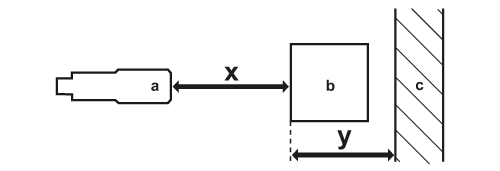

	a: sensor b: object c: background x: distance sensor/object [mm] y: min. distance object/background [mm]

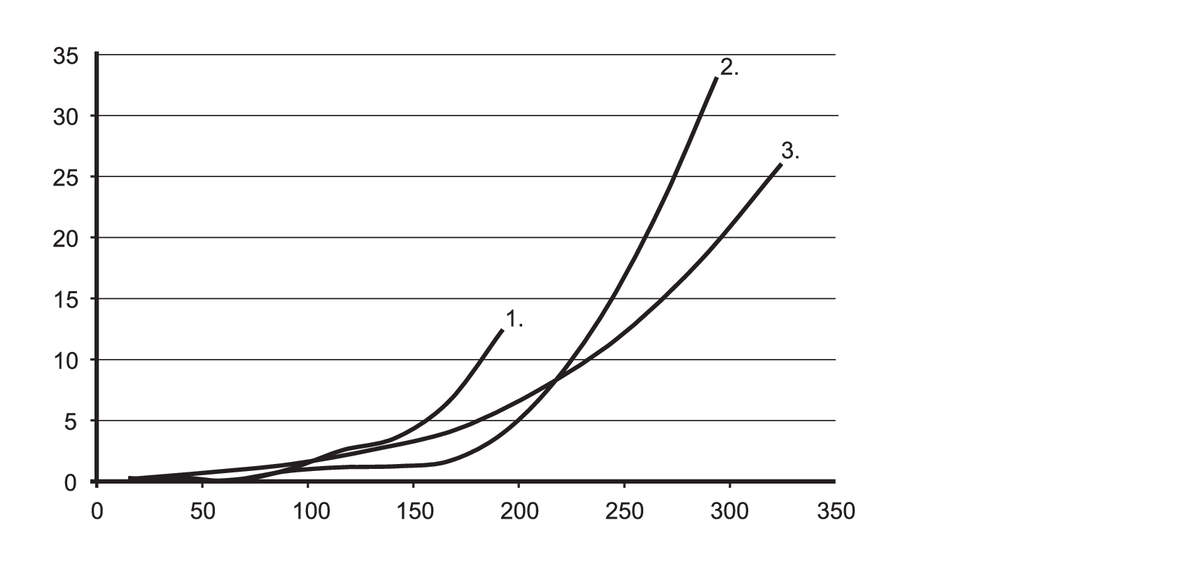

	x: distance sensor/object [mm] y: min. distance object/background [mm] 1 = object black (6 % remission) , Background white (90 % remission) 2 = object grey (18 % remission) , Background white (90 % remission) 3 = object white (90 % remission) , Background white (90 % remission)
