IFM O8H211 Diffuse Reflection Sensors with Background Suppression, NPN, 28.1 x 8.1 x 14.4 mm, Light-on Mode

Features:

• Compact light spot for precise detection even at longer distances
• Extremely reliable background suppression
• Installation within seconds, space-saving design

For more information, please see Data Sheet

Diagrams and graphs

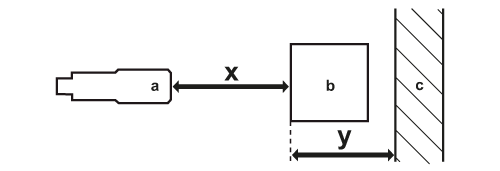

	a: sensor b: object c: background x: distance sensor/object [mm] y: min. distance object/background [mm]

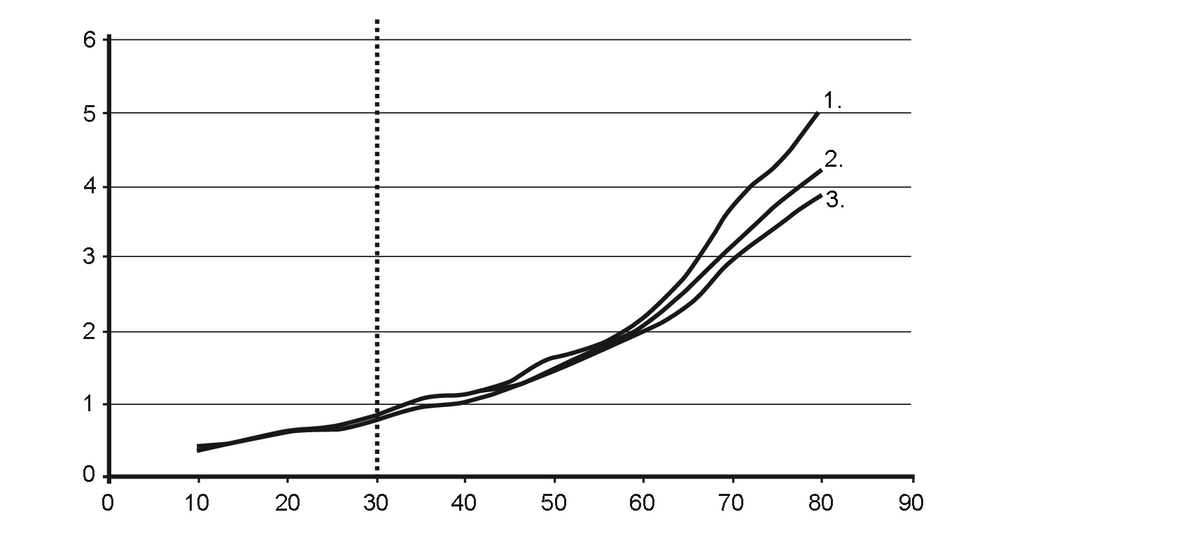

	x: distance sensor/object [mm] y: min. distance object/background [mm] 1 = object black (6 % remission) , Background white (90 % remission) 2 = object grey (18 % remission) , Background white (90 % remission) 3 = object white (90 % remission) , Background white (90 % remission)
