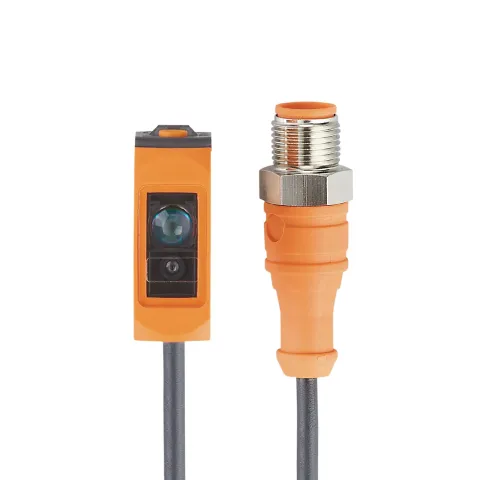

IFM O6H701 Diffuse Reflection Sensors with Background Suppression, PNP, 35.4 x 13 x 21 mm, Selectable Light-on/Dark-on Mode

Features:

• Precise background suppression
• Excellent price/performance ratio
• Compact rectangular design

For more information, please see Data Sheet

Diagrams and graphs

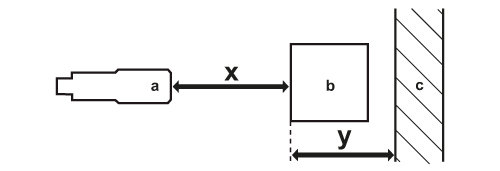

	a: sensor b: object c: background x: distance sensor/object [mm] y: min. distance object/background [mm]

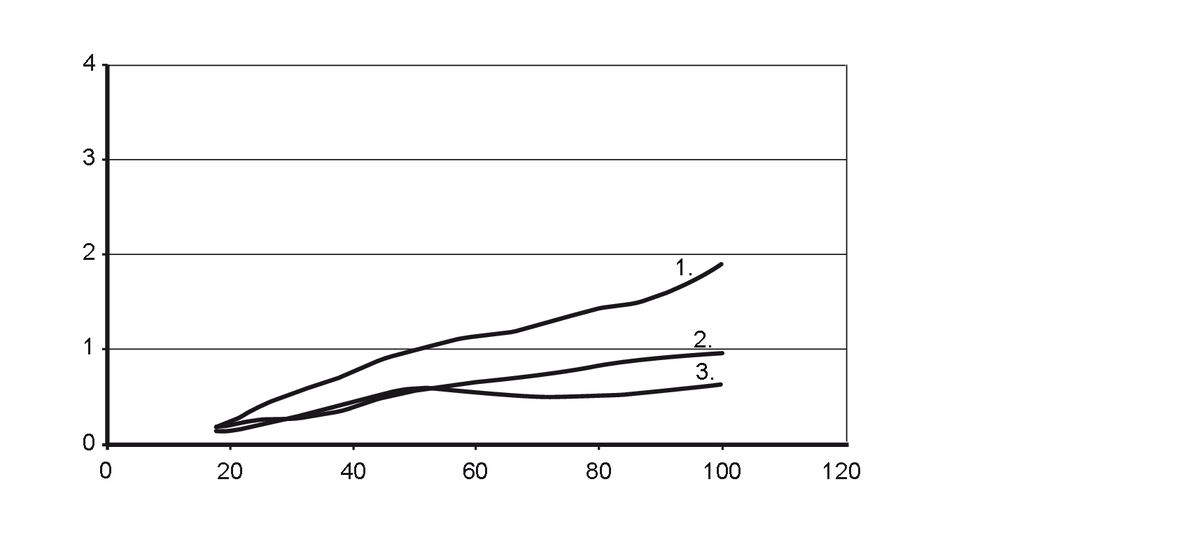

	x: distance sensor/object [mm] y: min. distance object/background [mm] 1 = object black (6 % remission) , Background white (90 % remission) 2 = object grey (18 % remission) , Background white (90 % remission) 3 = object white (90 % remission) , Background white (90 % remission)
