IFM O6D100 Laser Distance Sensor

Features:

• Photoelectric distance detection that is independent of color and offers a long range of up to 3 m
• Reliable detection on dark objects thanks to robust optical properties and generous angle tolerance
• Particularly compact housing for use in robotics, assembly and handling technology
• Simultaneous output of distance value and reflectivity for increased process reliability

For more information, please see Data Sheet

Diagrams and graphs

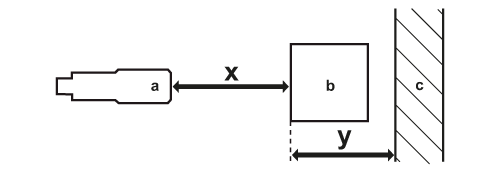

	a: sensor b: object c: background x: distance sensor/object [mm] y: min. distance object/background [mm]

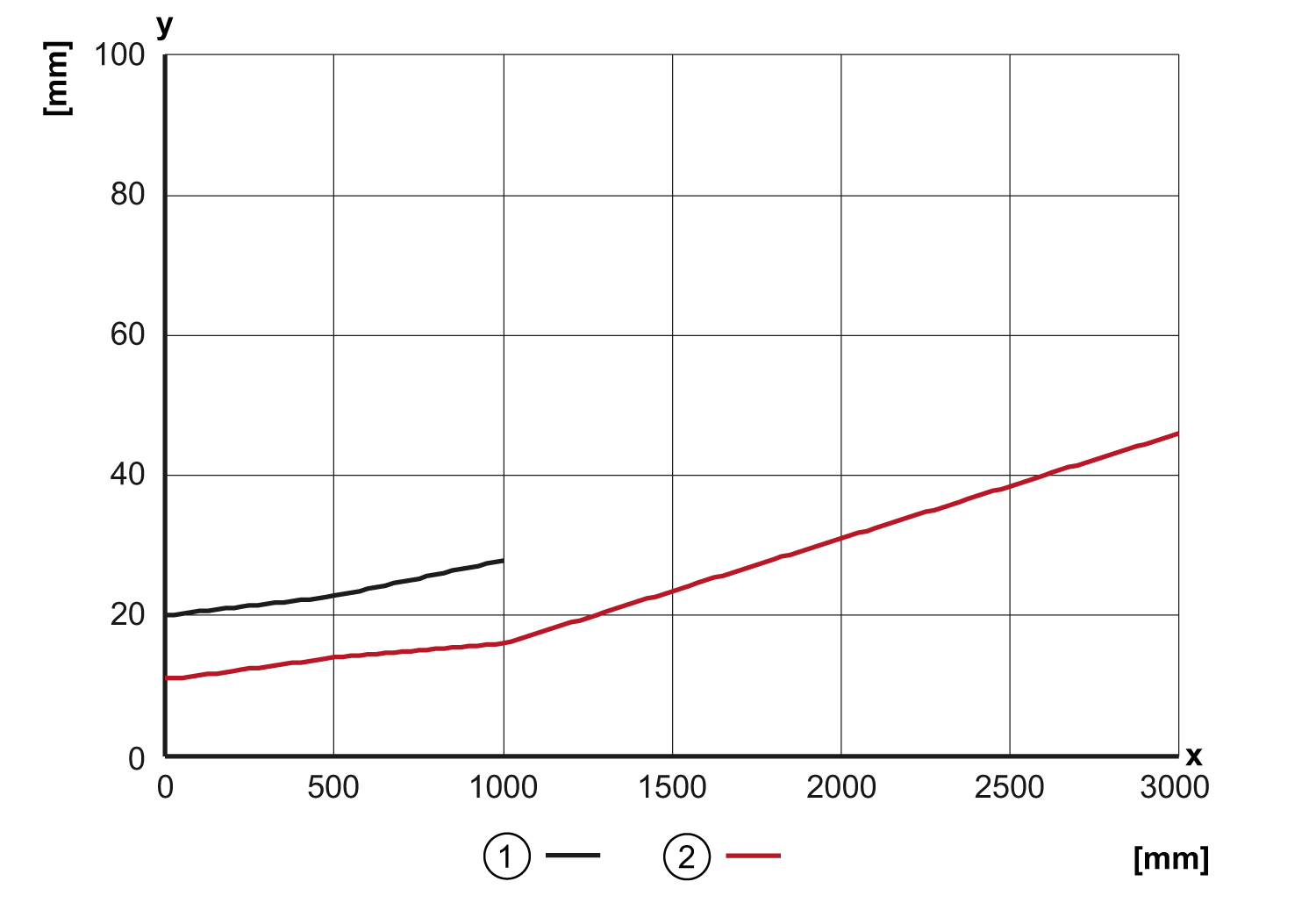

	1: Background any (6...90 % remission) 2: Background white (90 % remission)

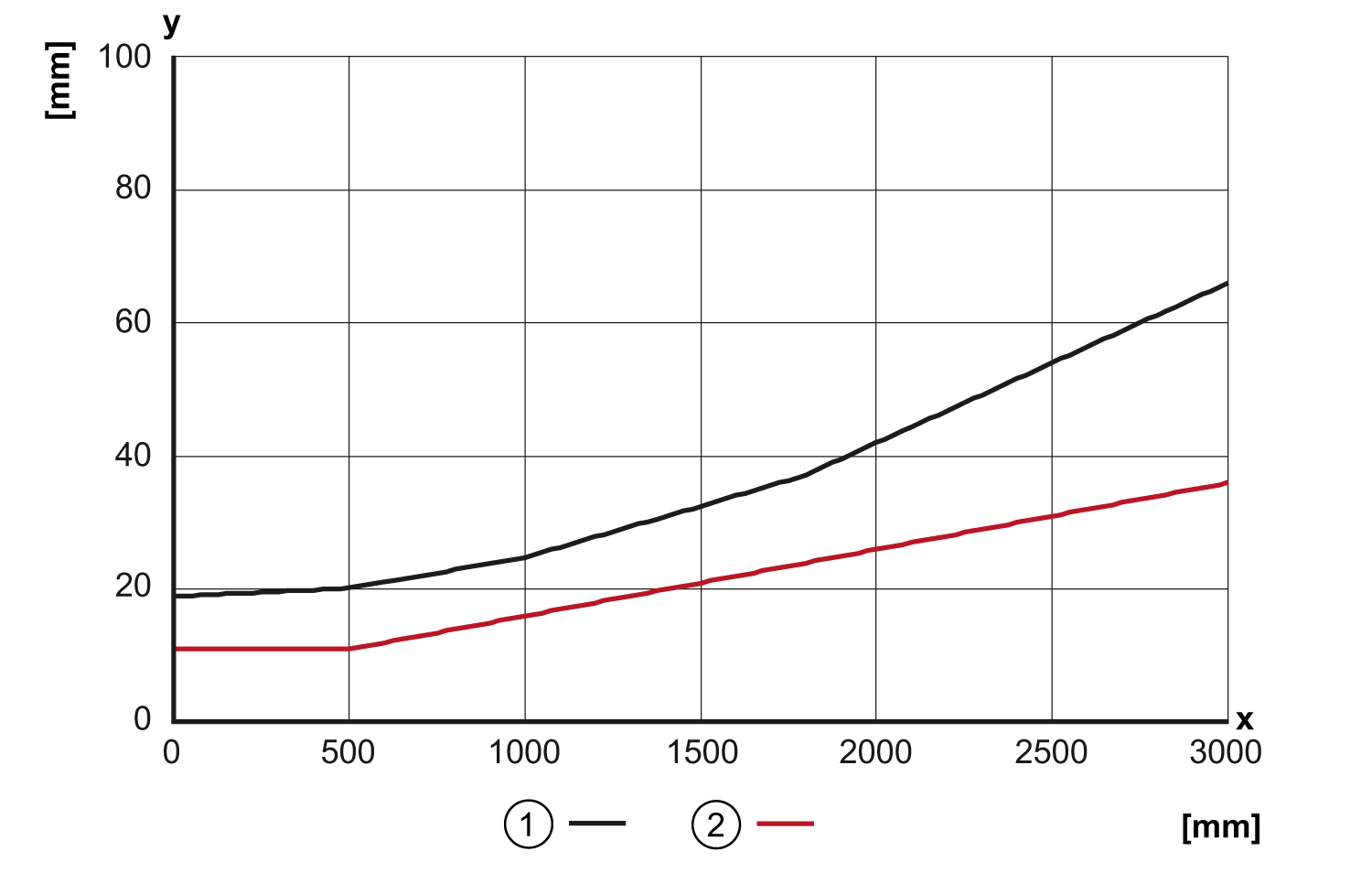

	1: Background any (6...90 % remission) 2: Background white (90 % remission)

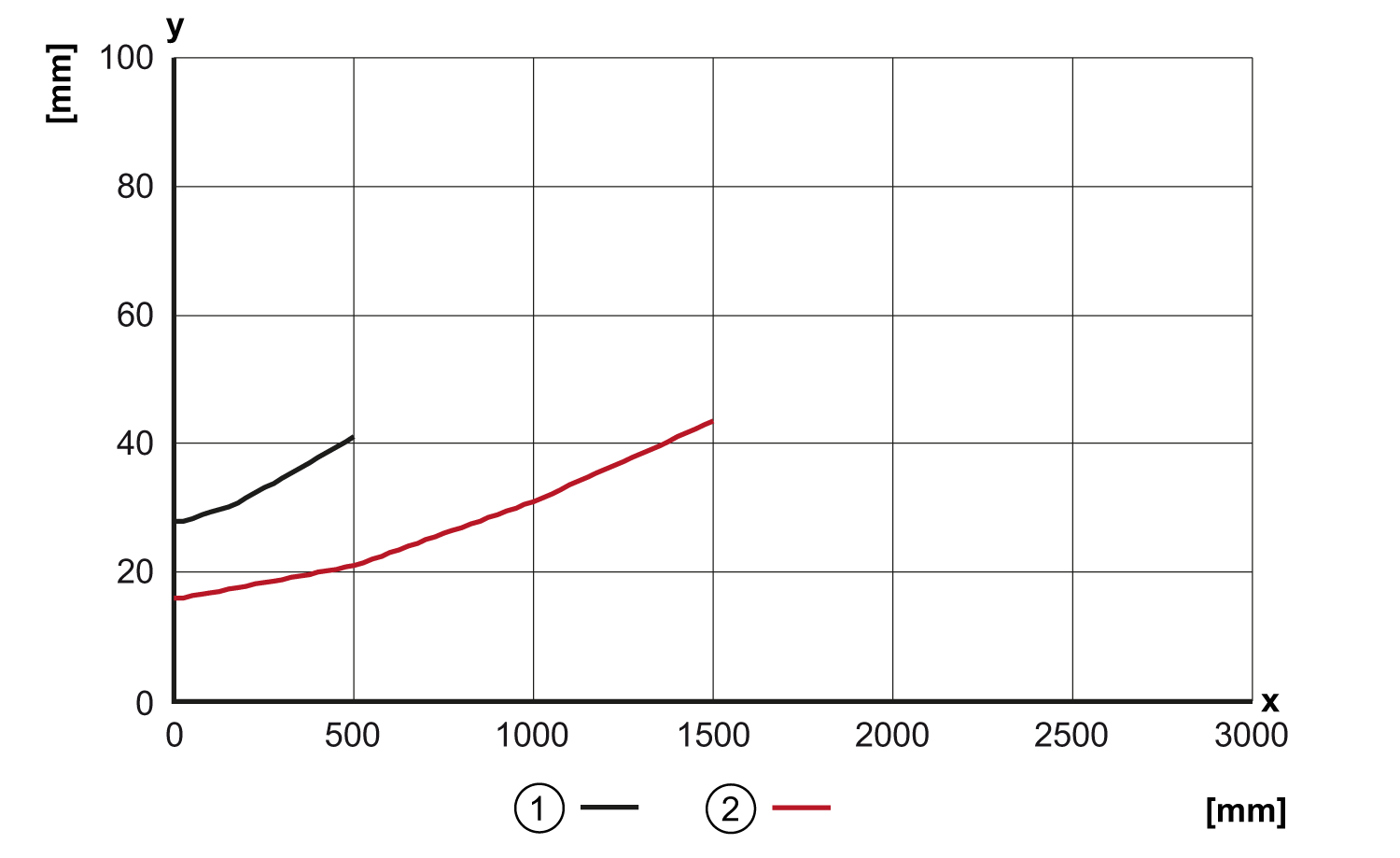

	1: Background any (6...90 % remission) 2: Background white (90 % remission)

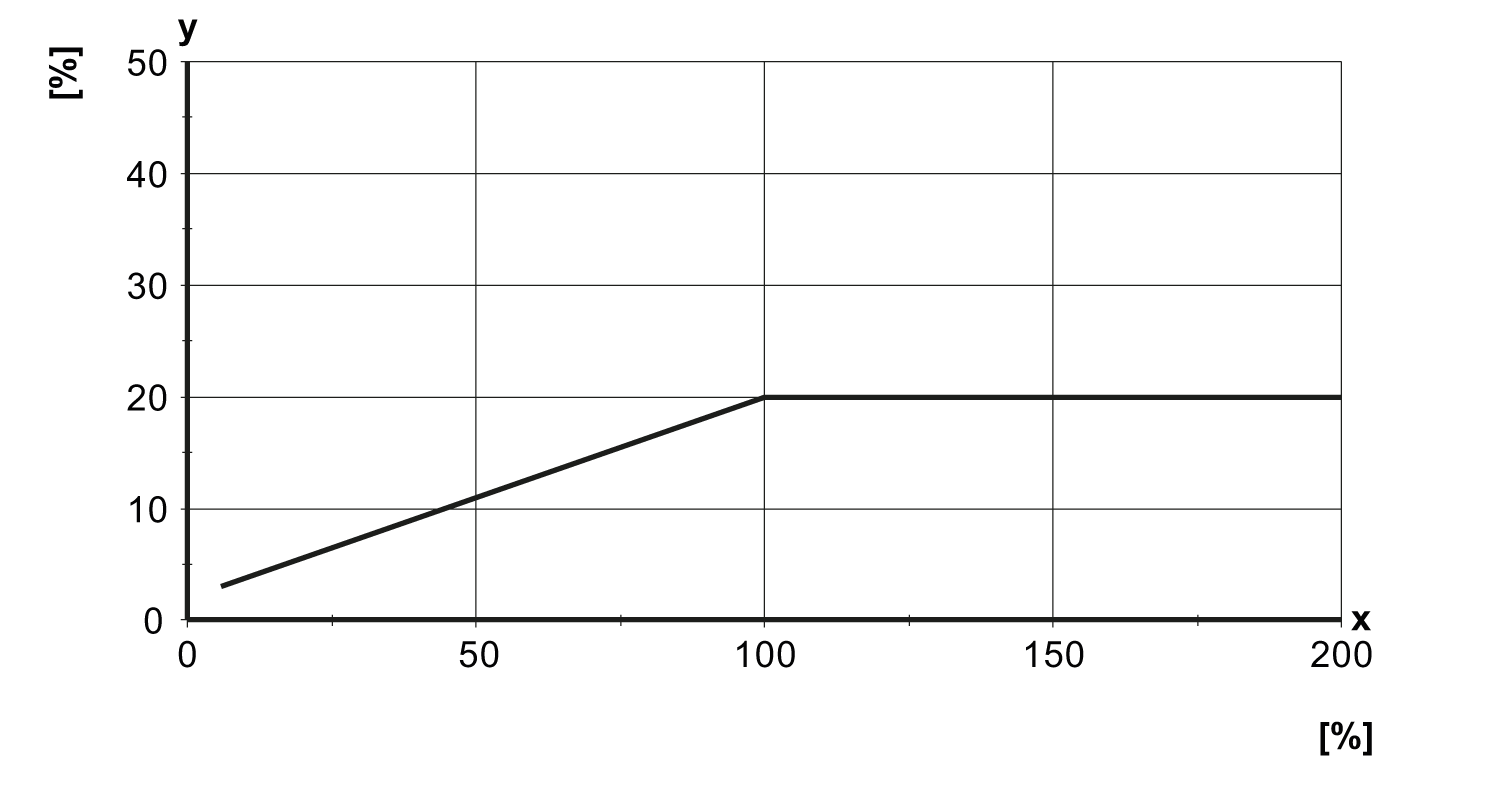

	1: bright 2: dark A: Set point B: Reset point x: object brightness ( Object reflectivity ) y: min. reflectivity difference to be detected safely
