IFM MX5015 Rotational Speed Sensor

Features:

• Non-contact detection of metal toothed wheels
• For very high switching frequencies up to 15,000 Hz
• Precise detection of the toothed wheel
• Wide operating temperature range
• Quick installation with flange adapters

For more information, please see Data Sheet

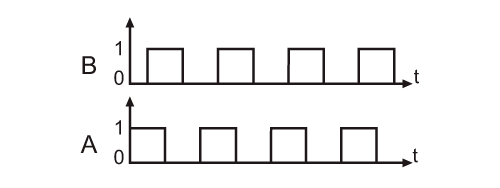

Diagrams and graphs

phase shift 90° +/- 20° pulse/pause ratio 50 % +/- 10 % Using toothed wheels with a different modulus has an influence on the sensing range and the phase position.
