IFM MK5247 T-Slot Cylinder Sensor, PNP, Normally Open, -25-85 Degree C Ambient Temperature

Features:

• End position setting aid with second LED
• operation indication for simplified diagnostics
• Self-locking fixture for quick mounting and easy adjustment
• Easy fit 'drop from the top' into a slot

For more information, please see Data Sheet

Diagrams and graphs

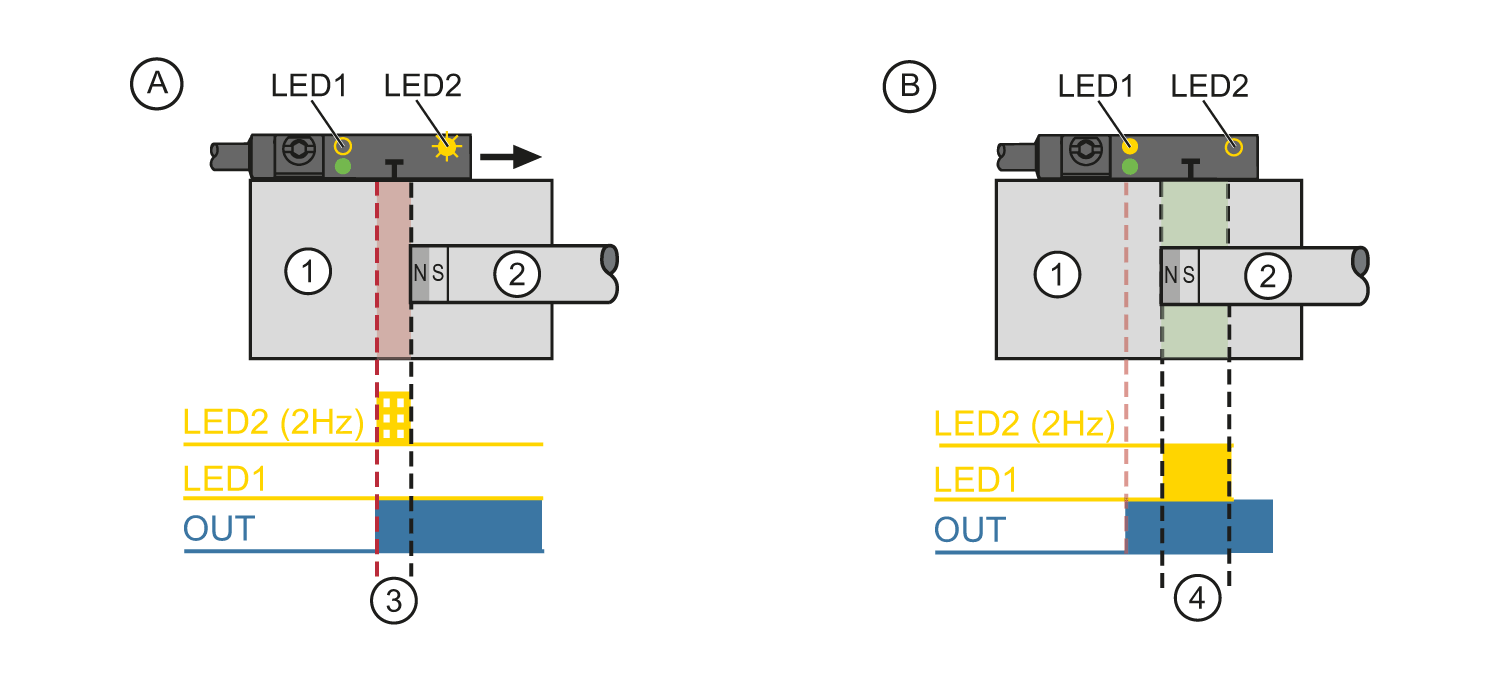

A: end position setting aid, step 1 B: end position setting aid, step 2 LED: LED1: switching status indication for safe area LED2: switching status indication for critical area 1: cylinder 2: piston 3: critical edge area, LED 2 flashes 4: safe switching area, LED 1 is on
