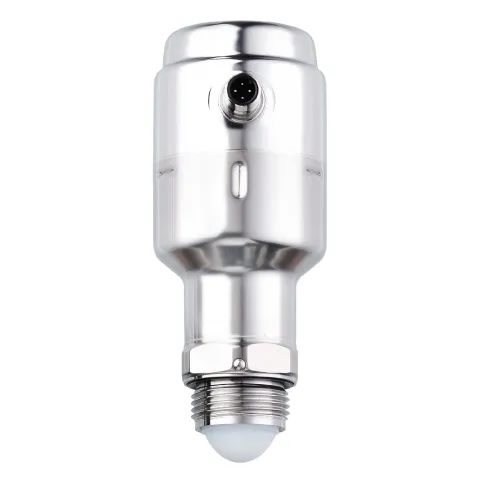

IFM LW2720 Continuous Level Sensor

Features:

• 80 GHz radar enables level measurement with millimeter precision of up to 10 meters
• Non-contact measuring principle: no malfunctions due to deposits or wear
• Certified for use in hygienic areas
• Simple installation and maintenance-free operation

For more information, please see Data Sheet

Diagrams and graphs

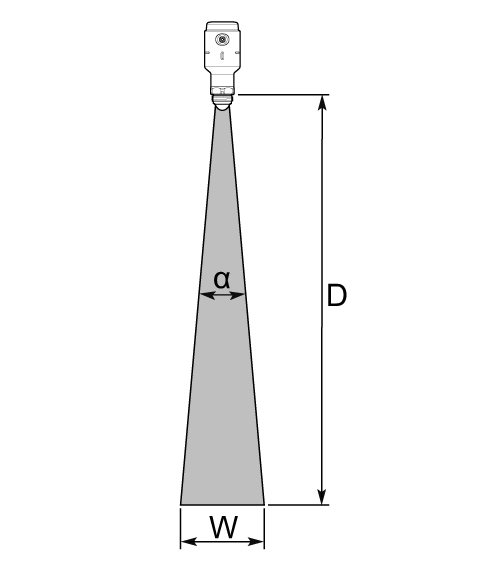

	Angle of radiation (α): 10° distance (D) 2 m - Beam width (W) 0.4 m distance (D) 4 m - Beam width (W) 0.7 m distance (D) 6 m - Beam width (W) 1.1 m distance (D) 8 m - Beam width (W) 1.4 m distance (D) 10 m - Beam width (W) 1.8 m
	X process temperature °C Y Ambient temperature °C

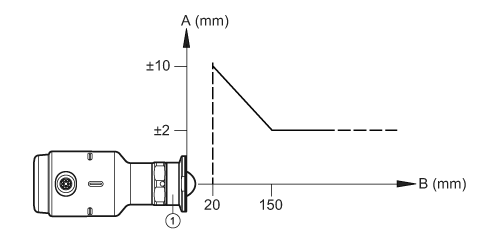

	1 Adapter example E33208 A Accuracy B distance
