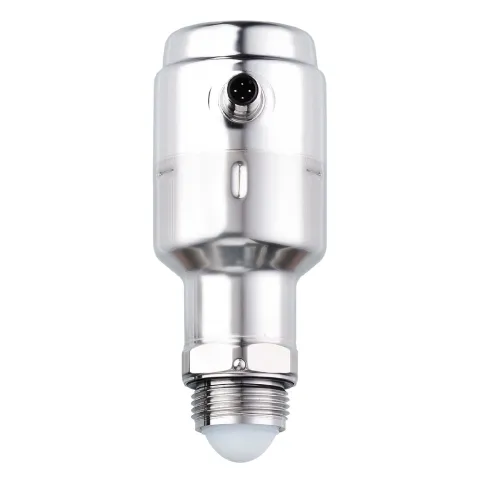

IFM LW2120 Continuous Level Sensor

Features:

• 80 GHz radar enables level measurement with millimeter precision of up to 10 meters
• Non-contact measuring principle: no malfunctions due to deposits or wear
• Direct measurement or through non-metallic walls
• Simple installation and maintenance-free operation

For more information, please see Data Sheet

Diagrams and graphs

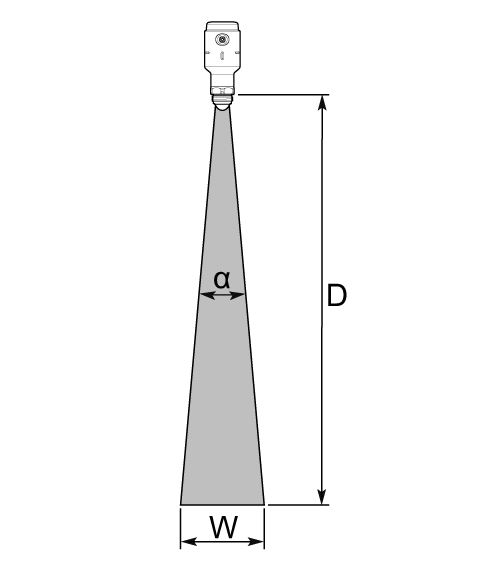

	distance (D) Beam width (W) 8° (with antenna extension) / 10° (without antenna extension) 2 m 0.3 m / 0.4 m 4 m 0.6 m / 0.7 m 6 m 0.8 m / 1.1 m 8 m 1.1 m / 1.4 m 10 m 1.4 m / 1.8 m

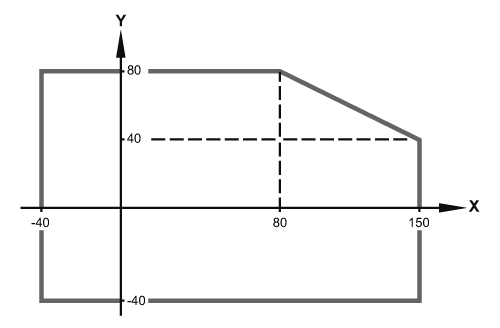

	X process temperature °C Y Ambient temperature °C
	A device reference point B Accuracy C distance
