IFM EVW159 Male Cordset, 5 m, PUR, Halogen-free, Gray, Dia 4.9 mm, Resistant to Welding Sparks, 4 x 0.34 sq. mm, 42 x Dia 0.1 mm

Features:

• Weld-slag resistant PUR cable with drag chain suitability
• Cable gland with special weld-slag resistant coating
• High protection rating for the requirements of harsh industrial environments
• Vibration and shock resistant thanks to coupling ring with locking mechanism
• Mechanical end stop to protect the O-ring from destruction

For more information, please see Data Sheet

Diagrams and graphs

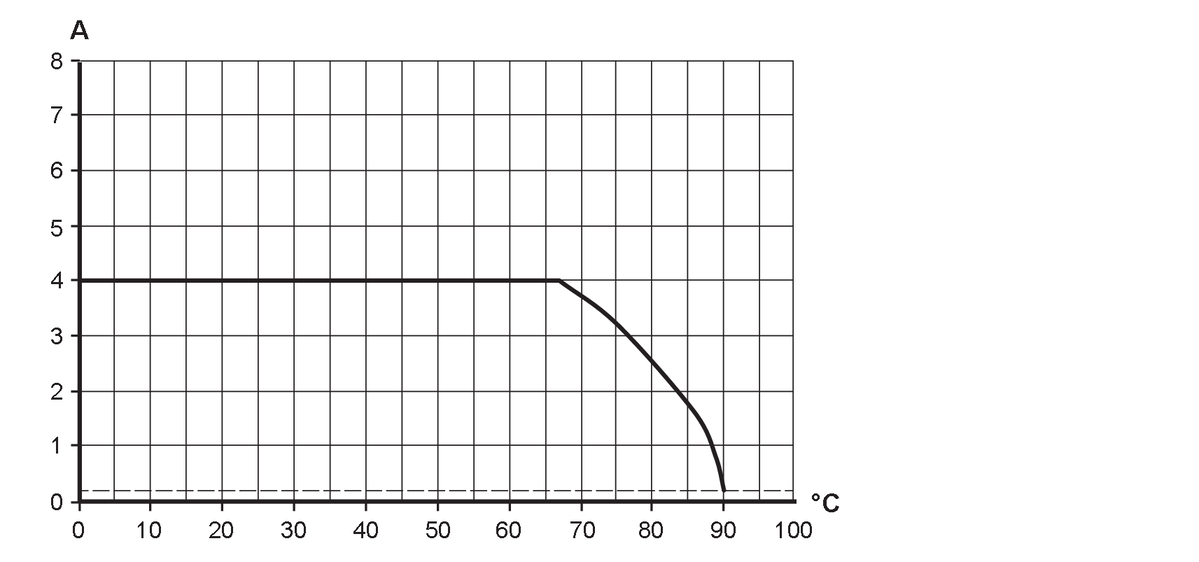

Derating Imax * 0.8 (DIN EN 60512-5-2) X Ambient temperature [°C] Y Current [A]
