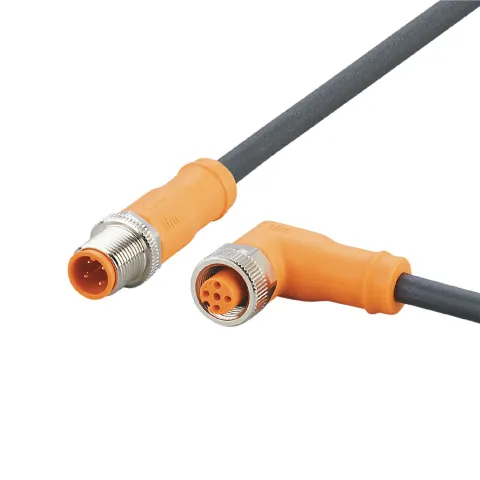

IFM EVC723 Connection Cable, 0.25 m, PUR, Halogen-Free, Black, Dia 6.2 mm, 4 x 1.00 sq. mm

Features:

• Large cable cross-section for reducing the voltage drop and transferring higher currents
• Resistant to oils and coolants
• Permanent, reliable sealing even when mounted without tools
• Vibration and shock resistant thanks to coupling ring with locking mechanism
• Mechanical end stop to protect the O-ring from destruction

For more information, please see Data Sheet

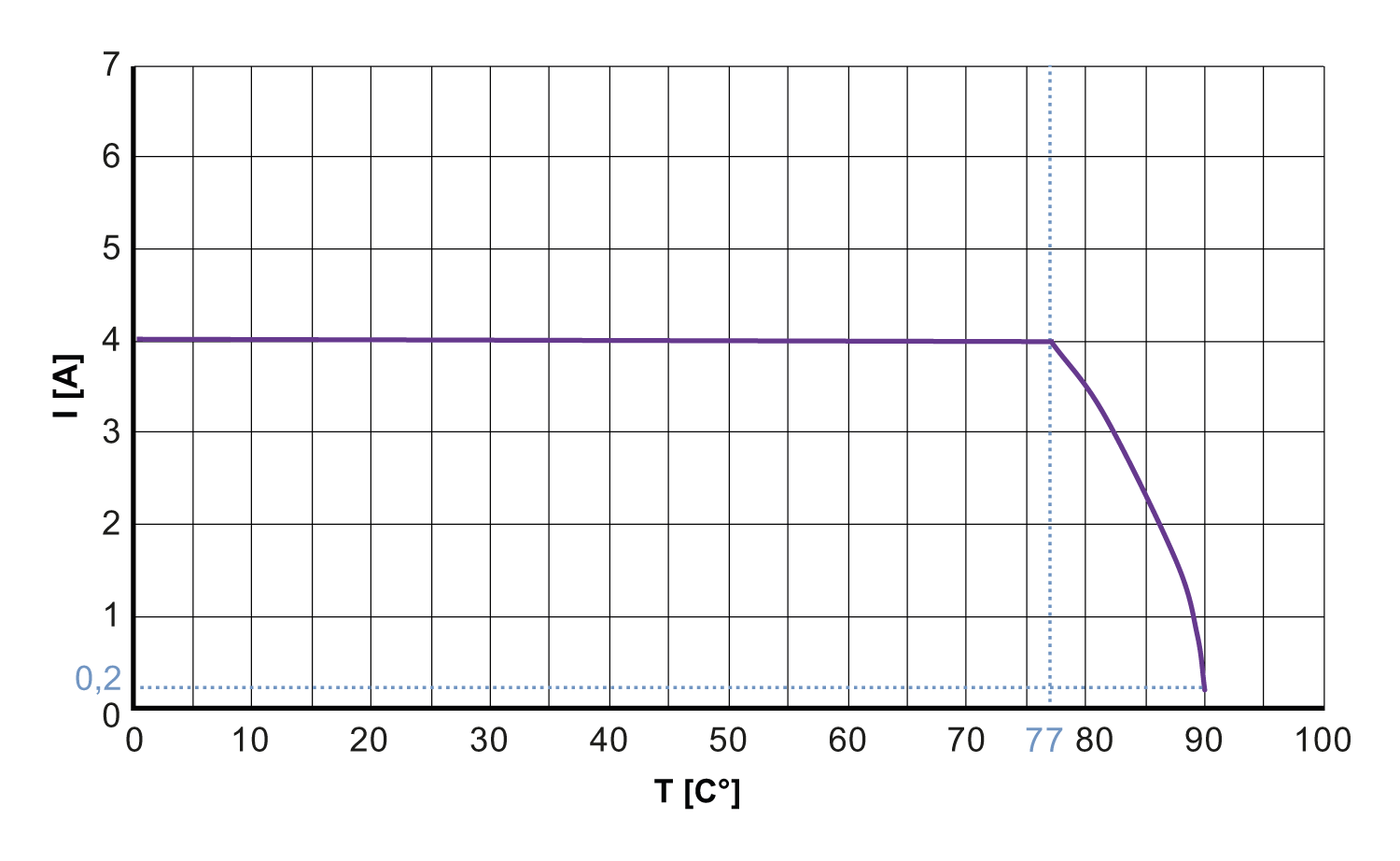

Diagrams and graphs

Derating Imax * 0.8 (DIN EN 60512-5-2) T Ambient temperature [°C] I Current [A]
