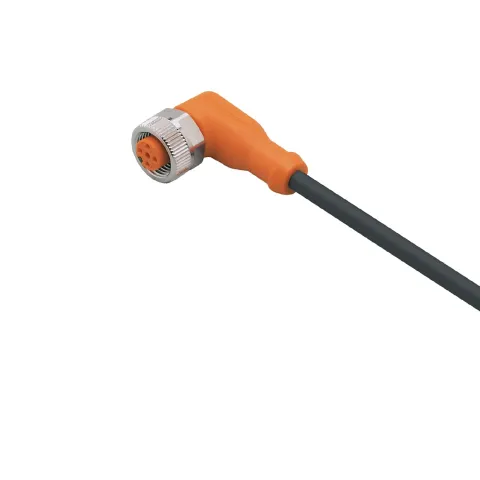

IFM EVC542 Female Cordset, 5 m, PUR, Halogen-free, Black, Dia 4.9 mm, Screened, 4 x 0.34 sq. mm, 42 x Dia 0.1 mm

Features:

• Resistant to oils and coolants
• Permanent, reliable sealing even when mounted without tools
• Mechanical end stop to protect the O-ring from destruction
• Vibration and shock resistant thanks to coupling ring with locking mechanism
• Continuously high EMC interference protection against noise field interference

For more information, please see Data Sheet

Diagrams and graphs

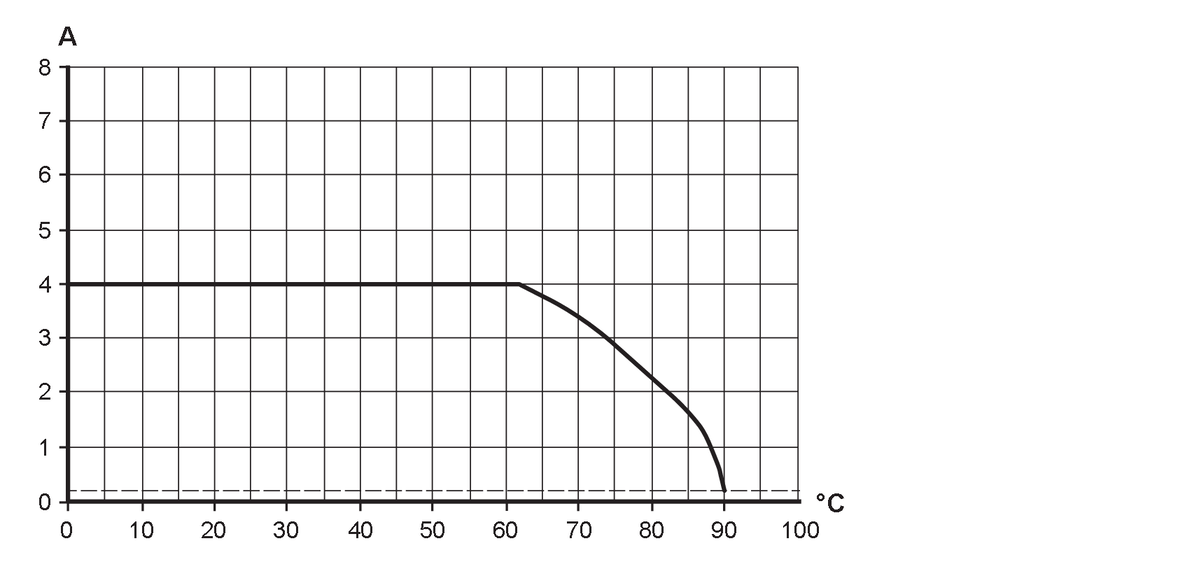

	Derating Imax * 0.8 DIN EN 60512-5-2 X Ambient temperature [°C] Y Current [A]

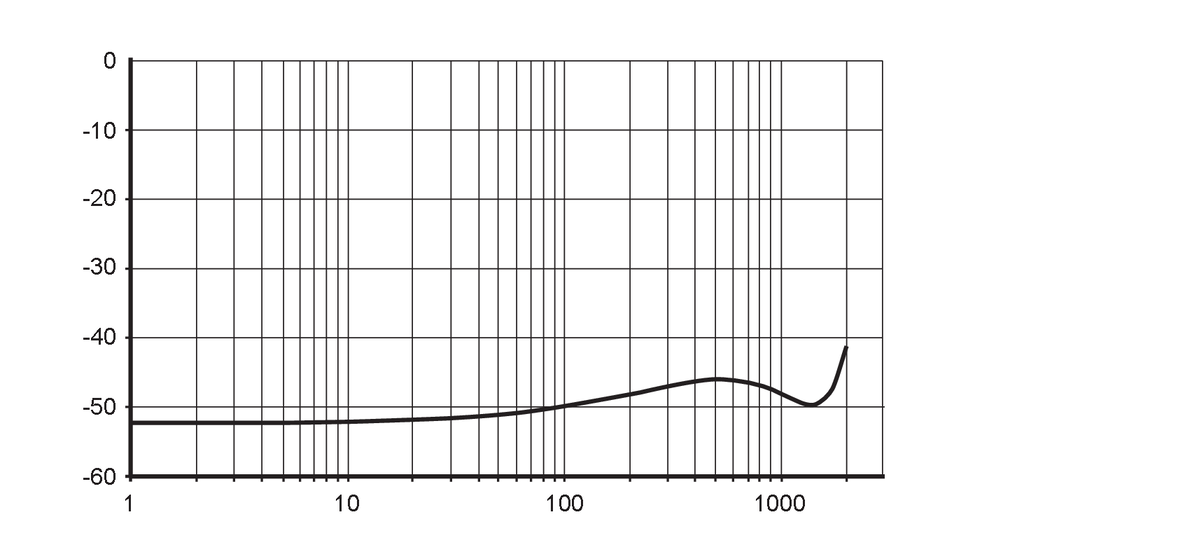

	x Frequency (MHz) y Shielding characteristics (dB) according to DIN EN 60512-23-3
