IFM EVC524 Female Cordset, 0.6 m, PUR, Halogen-free, Black, Dia 4.6 mm, 5 x 0.34 sq. mm, 42 x Dia 0.1 mm

Features:

• Resistant to oils and coolants
• Permanent, reliable sealing even when mounted without tools
• High protection rating for the requirements of harsh industrial environments
• Vibration and shock resistant thanks to coupling ring with locking mechanism
• Mechanical end stop to protect the O-ring from destruction

For more information, please see Data Sheet

Diagrams and graphs

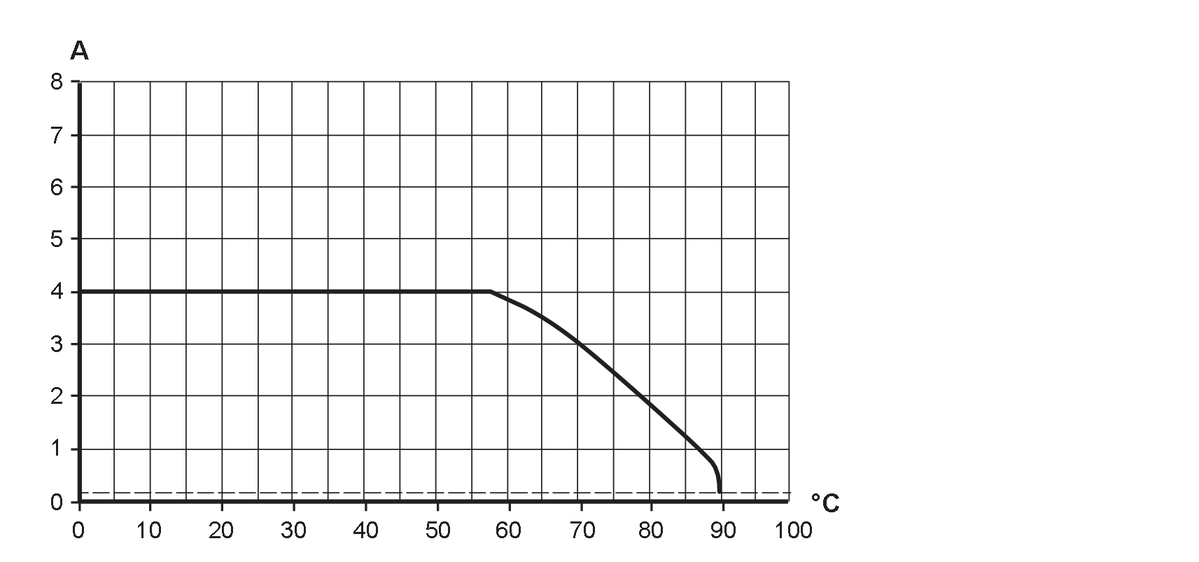

Derating Imax * 0.8 DIN EN 60512-5-2 X Ambient temperature [°C] Y Current [A]
