IFM CR413S Programmable Controller for Mobile Machines

Features:

• Freely programmable to IEC 61131-3 with CODESYS 3.5
• High-performance CAN interface for various communication tasks
• Multifunctional inputs and current-controlled outputs ensure maximum adaptability
• Can be used as a safety controller up to SIL2/PL d when combined with a TÜV-certified software package

For more information, please see Data Sheet

Diagrams and graphs

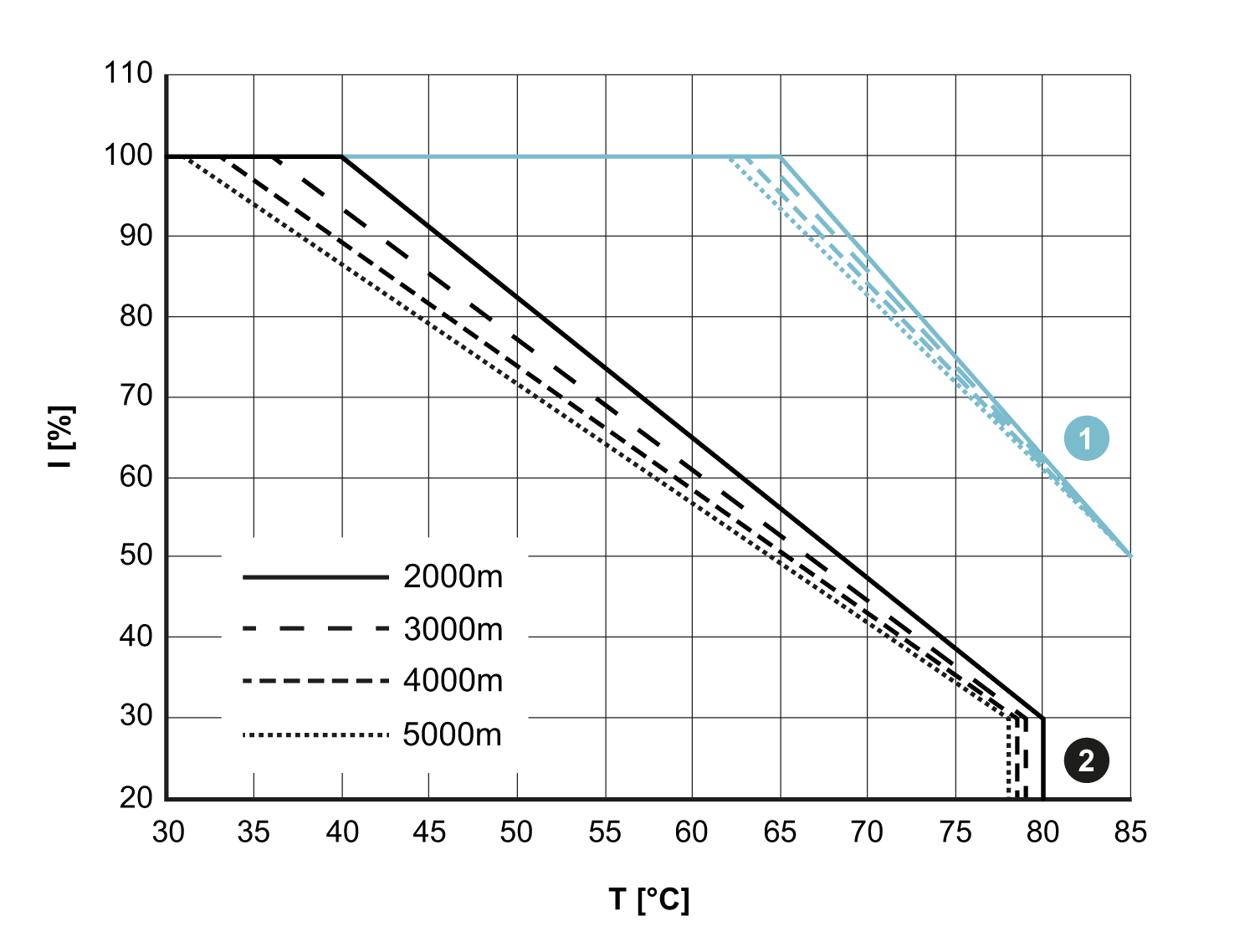

	characteristics for the current rating depending on the temperature and operating altitude X: Ambient temperature T [°C] Y: current rating for VBB0, VBB1, VBB2 I [%] 1: installation on painted metal plate 2: installation in a standard cabinet on a surface with low thermal conductivity (e.g. wood/plastic)
	characteristics for the switching current depending on the temperature and operating altitude X: Ambient temperature T [°C] Y: switching current of the outputs I [%] 1: installation on painted metal plate 2: installation in a standard cabinet on a surface with low thermal conductivity (e.g. wood/plastic)

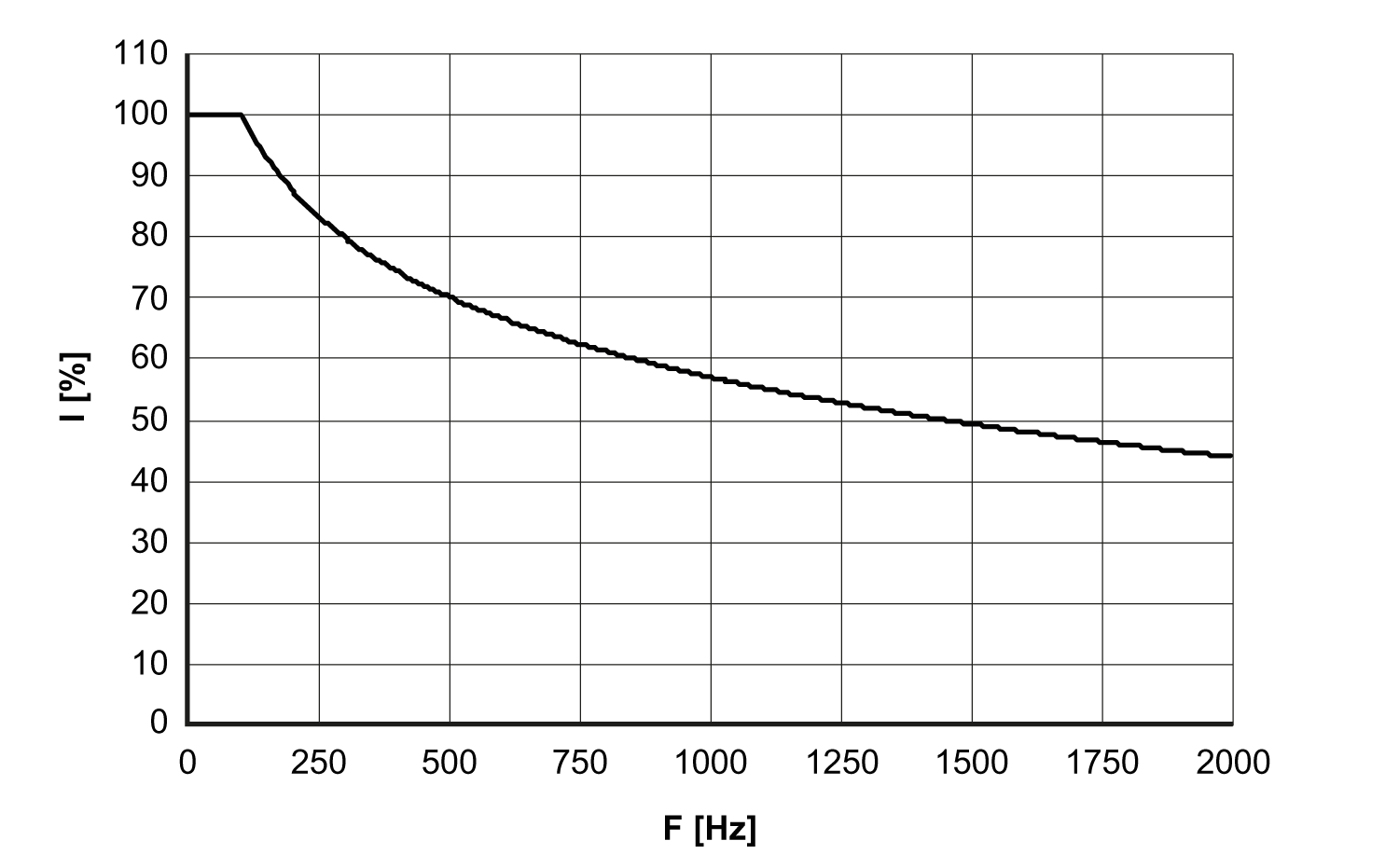

	characteristics for the switching current depending on the output frequency X: output frequency F [Hz] Y: switching current of the outputs I [%]
