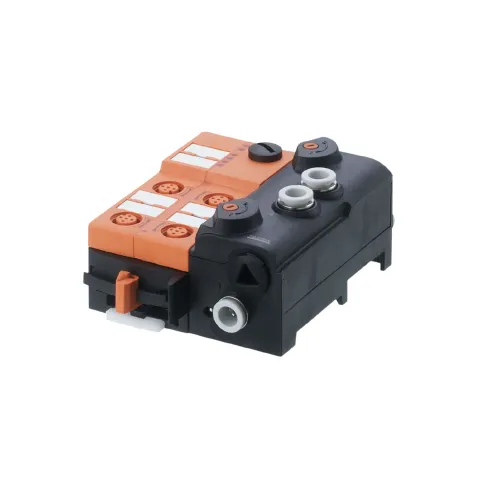

IFM AC5270 AS-Interface Airbox with Quick Mounting Technology

Features:

• For the decentralized triggering of cylinders and valve actuators
• Combination of AS-i I/O module and solenoid valve
• High energy efficiency due to decentralized application near the actuator
• Reduced installation and wiring complexity
• Easy toolless installation

For more information, please see Data Sheet

Diagrams and graphs

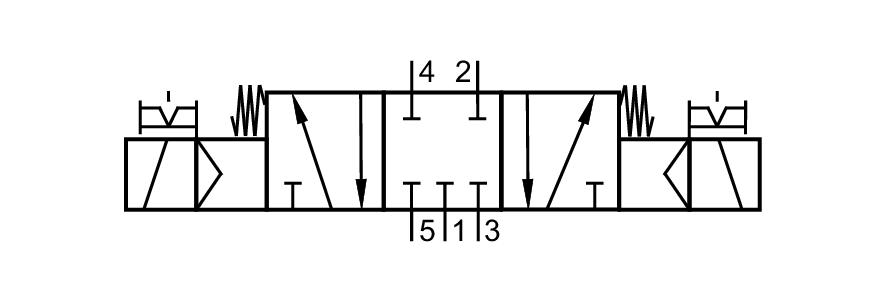

1 x 5/3-way slide valve (free from overlapping); middle position blocked
