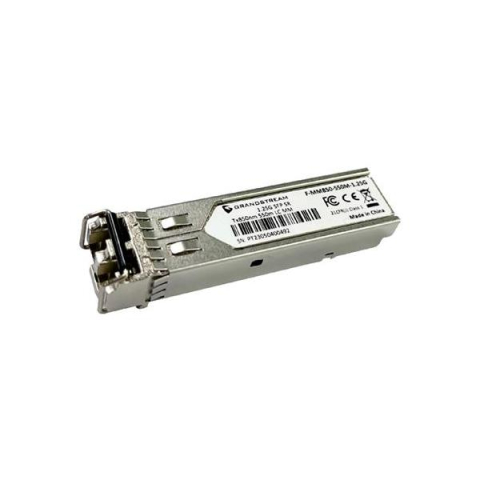

Grandstream F-MM850-550M-1.25G SFP Fiber Module

Features:

• Hot-pluggable small-form factor transceiver modules integrated with the high sensitivity PIN receiver and signal conditioner for 1.25/10 Gigabit Ethernet applications. SFP modules support very low EMI and excellent ESD protection
• Fiber Mode: Multi-Mode Fiber
• Connector Type: Duplex LC
• DDM: 10Gbps SFP+
• Nominal Wavelength: 850nm
• Data Rate: 1.25Gbps SFP
• Max Power Consumption: 0.8W
• Transfer Distance: 50/125µm(OM2): 0.55km 62.5/125µm(OM1): 0.3km
• TX Power: -10 to -3dBm, ±3dB
• RX Power: -18 to -3dBm, ±3dB
• Operation Voltage: 3.3V±0.3V
• Environmental: Operation: 0° to 70°, humidity: 5% to 85% Storage: -40° to 85°
• Unit Weight: 15.80g
• Standards: SFF-8472, SFP MSA, IEEE 802.3z, RoHS-6

For more information, please see Data Sheet
