GfG Instrumentation EC22-718-DM EC22 Series Fixed Transmitter, Ammonia (NH3) MK454-0, with Display, Modbus, 0 - 1,500 ppm Range

Transmitter with display for toxic gases, oxygen and hydrogen

If you need to monitor toxic gases, oxygen or hydrogen outside of Ex zones, the EC22 D transmitter is a reliable and economical solution. The EC22 D transmits measured values and status notifications on digital (RS-485) signal, while also displaying them on site. In the event of an alarm, it warns everybody in the vicinity using its internal buzzer. In combination with GfG's reliable controllers, it can be installed in new gas detection systems or retrofitted into existing ones.

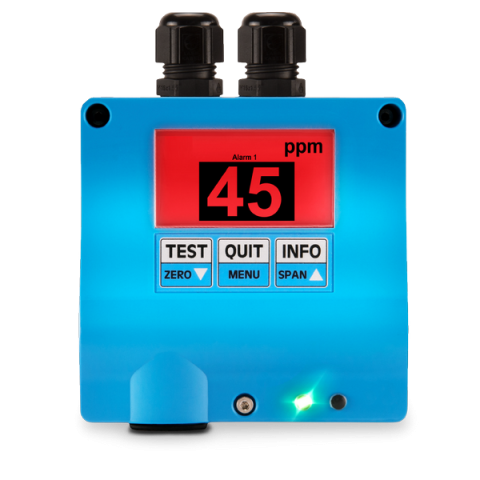

The EC22 D uses the electrochemical method (EC) to detect toxic gases such as carbon monoxide as well as oxygen and hydrogen. The current measured value is indicated on the 2.2-inch display, which lights up red in the event of an alarm. The different sensors measure a variety of gases in measuring range 0 - 1,500 ppm. Its automatic temperature compensation and the linearization of the measuring signals ensure high measuring accuracy.

Functional safety and device protection

The hardware of the EC22 D complies with the European Functional Safety Standard DIN EN 61508-2: 2011 (SIL). The housing is protected against the ingress of dust and water (protection class: IP54). An optional weatherproof housing provides additional protection.

Communication and service

Signals are transmitted via the digital RS-485 interface (Modbus protocol). The transmitter uses two status LEDs to indicate its operating status. The built-in button interface is intuitive to use and facilitates service and adjustments on site (one-person adjustment). The multi-colored backlit display shows the current measured value, status notifications and the EC22 D's menu. Test gases for functions tests can be inserted via a calibration adapter.

Features:

• Measuring principle: Electrochemical (EC)
• Measuring gas: Ammonia (NH₃)
• Expected sensor lifetime: 2-3 years
• 2.2-inch color display, built-in button interface, buzzer
• Signal transmission: RS-485
• Protection class: IP54

Approvals / Certifications:

• SIL 1/2 (hardware)

For more information, please see Info Sheet and Full Specification
