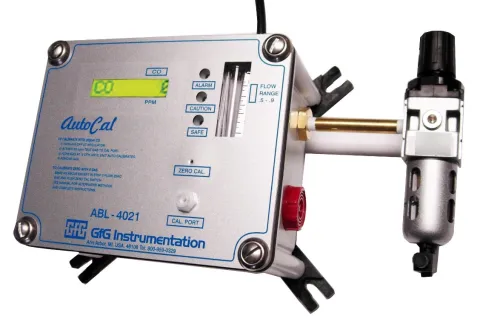

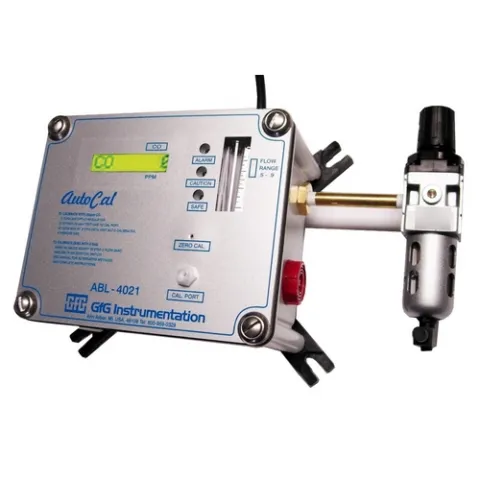

GfG Instrumentation 4021-C RAM 4021 Respiratory Airline Monitor, Carbon Monoxide (CO), with CSA Approval

The RAM 4021 AutoCal® series is the unit of choice where specific and accurate measurement of carbon monoxide, oxygen or dew-point levels are required. Designed to meet OSHA requirements for monitoring of Grade D respirable air, this unit is equipped with a reliable electrochemical sensor that accurately indicates the level of carbon monoxide on an illuminated liquid crystal display. Adding versatility, this unit offers optional oxygen or dew point sensors for applications where detection or measurement is needed.

Calibration and maintenance of the RAM 4021 are simple with GfG innovative AutoCal® system. All models may be purchased with or without airline filter systems.

The 25, 50 and 100 CFM panels filter out dangerous toxins from supplied air sources and ensure clean, breathable air. The three-stage filter system efficiently removes particulates, oil vapors and hydrocarbons from an air supply. After filtration, the regulator sets the pressure for the respiratory equipment and the manifold assembly provides multiple outlets for airline hose quick connections.

Features:

• Continuous Carbon monoxide (CO) monitor for compressed air
• Robust, easy to operate design
• Integrated dew point measurement (if specified)
• Meets OSHA monitoring requirements for grade D breathing air
• AutoCal® automatic calibration
• User-adjustable alarm points
• Dry contacts for remote horn and lights
• Internal, case-mounted horn
• LCD display
• NEMA 4X housing
• Three-stage filtering option for up to 8 users

For more information, please see Data Sheet
