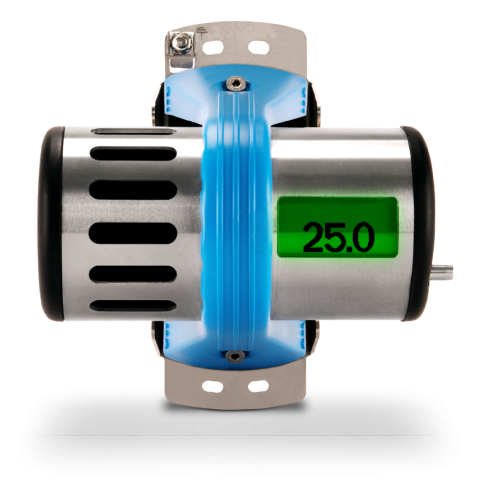

GfG Instrumentation 2901-98-009 IR29 e Series Fixed Transmitter, Propane, Display, Modbus, with Pressure, Humidity Comp., IP67, 0-100% LEL Range

With Modbus and display for flammable gases in Ex zones

If flammable gases and vapors need to be monitored in Ex zones, the IR29 DB transmitter is a reliable and robust solution. It transmits measured values and status notifications via Modbus protocol on an RS-485 interface. The LC display indicates the current measured values. Gases are monitored either on site by diffusion or by pressureless gas supply using a flow adapter. In combination with one of GfG's reliable controllers, it can be installed in new gas detection systems or retrofitted into existing ones.

The IR29 DB uses non-dispersive infrared (NDIR) sensor technology to detect combustible gases and vapors. Our patented 4-beam and 4-wavelength technology with gold-plated mirror optics, which do not require any beam splitters, is used to ensure selective measurement results without false alarms.The installed infrared sensors detect up to three gases simultaneously and also enable measurements above the lower explosion limit (LEL). They do not require oxygen and are not susceptible to sensor poisons. The long-life sensors make the IR29 DB a permanently reliable solution for detecting a wide range of combustible gases and vapors in the 0 to 100 % LEL measuring range. Its automatic temperature compensation and the linearization of the measurement signals ensure high measurement accuracy.

Communication and service

The IR29 DB transmits signals via the digital RS-485 interface (Modbus). Two status LEDs are used to indicate its operation status. The LC display indicates the current measured gas concentration. Depending on the location of the installation, you might also be interested in the rotating version. Service and adjustments can be carried out on site using the optional RC2 remote control or the RC3 IR remote control (one-man adjustment). The IR29 DB's self-monitoring functions increases device safety between maintenance intervals. The transmitter automatically records measured values and incidents in an internal ring buffer. Test gases for function tests and adjustments can be inserted via a calibration adapter.

Safety and instrument protection

The IR29 DB is ATEX certified for use in Ex zone 1. It complies with the increased safety "e" and encapsulation "m" standards. The housing made of V4A stainless steel and poly-carbonate is protected against the ingress of dust and water (protection class: IP67). Accessories include a guard plate and dust filter.

Features:

• Measuring principle: infrared (IR)
• Measuring gas: Propane
• Not susceptible to sensor poisons
• Expected sensor lifetime: 6 years
• Color display
• Signal transmission: RS-485 (Modbus)
• Protection class: IP67 (with rotating display: IP40)
• Integrated data logger
• Range: 0-100% LEL

Approvals / Certifications:

• ATEX certification: II 2G Ex eb mb ib [ib] IIC T4 Gb
