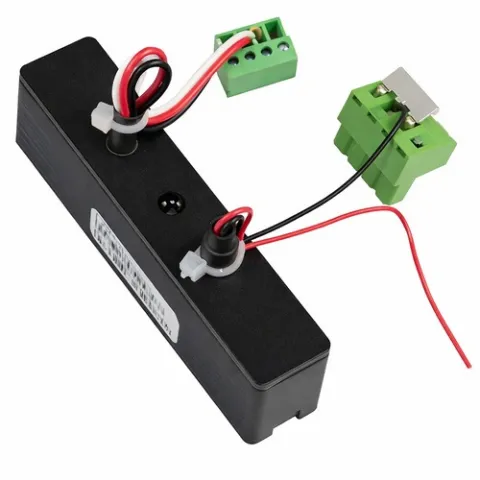

GF Piping Systems 3-8058-3 i-Go Analog to S3L Signal Converter 9900 Module

The GF 8058 i-Go® Analog to S³L Module accepts any 4 to 20 mA signal and converts it into the GF digital (S3L) format, the serial data format used by the type 9900 and 9950 instruments and 0486 Profibus Concentrator. When used with the 9900 or 9950 Transmitter or the 0486 Profibus Concentrator, the measurement type and operating range are defined in the setup menu.

The 3-8058-3 is mounted directly into the relay module slot of the 9900-1P transmitter.

Features:

• Dual 4 to 20 mA input (9950-10/-11 only)
• Single 4 to 20 mA sensor input
• Connects any external product with 4 to 20 mA output
• In-line wire
• 3-8058-3 installs into the 9900-1P relay module port

Applications:

• Tank Level Monitoring (ultrasonic and radar to 9900 or 9950)
• Any product with 4 to 20 mA output
