GF Piping Systems 3-2874-A515 Type 2874 Conductivity Electrode 3/4" NPT Fitting 316L Stainless Steel K=10 (15 ft Cable)

The type 2874 contact conductivity electrodes are ideally suited for measuring resistivity/conductivity of liquids ranging from pure and ultrapure water to seawater, rinse water and chemical solutions.

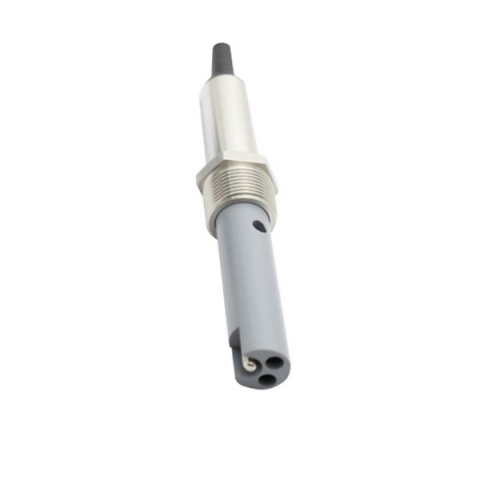

The 2870 conductivity probes are two-electrode flow-through cell design coaxially arranged made of 316L stainless steel material, PTFE insulator and Polypropylene process connection. A platinum RTD (Pt1000) located within the electrode allows for optimal temperature sensing. With a reversible process connection, these electrodes are designed to provide installation versatility in submersible and in-line configurations.

Features:

• Process connection - 3/4" NPT Polypropylene
• New three-hole flow-through design for facilitated installation
• 316L SS electrodes material
• In-line or submersible mounting
• NIST traceable certified cell constant ±1%

Applications:

• Pure Water Treatment - Microfiltration, Ultrafiltration, Reverse Osmosis, Ion Exchange, Deionization, Distillation
• Boiler Condensate
• Semiconductor Water Production
• USP Purified Water
• Rinse Water
• TDS (Total Dissolved Solids)
• Salinity
• WFI Water Production
