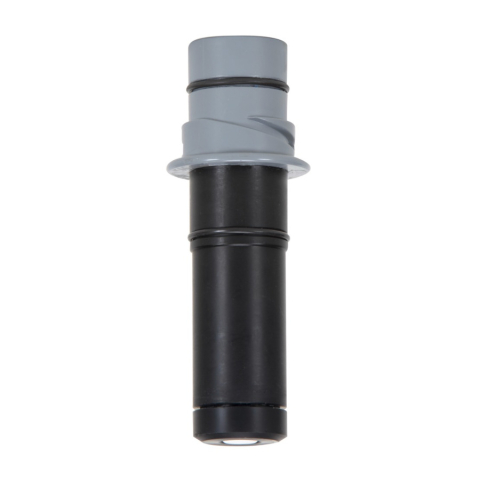

GF Piping Systems 3-2630-2 Amperometric Free Chlorine Electrode, 0.05 to 5 ppm (mg/l)

The type 2630 Amperometric Chlorine electrode is designed to measure free chlorine in fresh water treatment applications. The electrode is available with a measurement range of 0.05 to 5 ppm. This electrode requires the 2650 Amperometric Electronics to output a digital (S3L) signal to the 9950-3/-4 Chlorine Controller.

Utilizing smart-sensor technology, this electrode has a unique embedded memory chip and can communicate a wide variety of information to the 9950-3/-4 Chlorine Controller. The 9950-3/-4 can display the electrodes stored information which includes the serial number, electrode type, service time in hours, chlorine range, high and low temperatures, and the maximum and minimum pH detected over time.

The patented DryLoc® connector with its Gold plated contacts and O-ring seal ensure a waterproof and reliable interconnect to the 2650 electronics and allows quick assembly during system start up, while providing a easy way to service or replace the Amperometric electrode.

NOTE: This electrode is required to be in chlorined water at ALL times.

Features:

• Embedded memory chip accessible via the 9950-3/-4 Chlorine Controller
• Quick assembly with GF 's patented DryLoc® connector
• Integrated temperature element for automatic temperature compensation
• Separate drive electronics (2650 Electronics), for easy servicing and electrode replacement

Applications:

• Residual Chlorine Monitoring:
  • Water Distribution
  • Ground Water
  • Surface Water
  • HVAC Applications (cooling water)
  • Food and Beverage
  • Swimming Pools
  • Water Parks

*NOTE: The 9950-3/-4 Chlorine Controller is not compatible with the 3-9950-1 / -2 /-10 /-11 controller

Standards and Approvals:

• UKCA, CE, FCC
• RoHS compliant, China RoHS
• Manufactured under ISO 9001 for Quality
