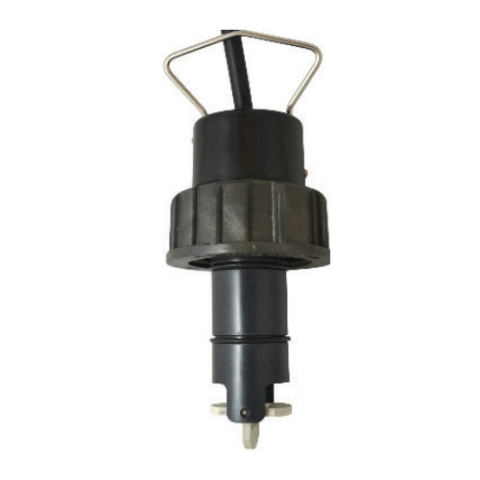

GF Piping Systems 3-2536-U0 Signet Low Flow Paddlewheel Sensor Insertion-style PVC Housing and Cap ETFE, for 1/2 - 4 inch pipe

Features:

• Operating range: 0.1 to 6 m/s, 0.3 to 20 ft/s
• Open collector output
• Installs into pipe sizes: DN15 to DN900, 0.5 to 36 in
• Max Pressure rating: PP 12.5 bar at 20 °C, 180 psi at 68 °F PVDF 14 bar at 20 °C, 200 psi at 68°F
• Rotor: PVDF
• Compatibility: 8900, 9900, 9900-1BC, 9950
• Power source: <20mA at 3.3 to 24 VDC
• *Only Signet installation fittings
• PVC 2536 version DN15 to DN100 (½ to 4 in.) for concentrated Sodium Hypochlorite 12.5% dosing application in water treatment
