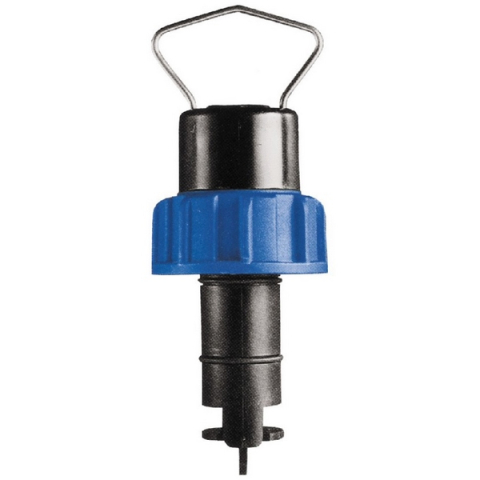

GF Piping Systems 3-2536-P0-050 Rotor-X Paddlewheel Flow Sensor Polypropylene Titanium Rotor Pin PVDF Rotor Black 1/2" to 4" (50 ft Cable)

Simple to install with time-honored reliable performance, type 2536 Rotor-X Paddlewheel Flow Sensors are highly repeatable, rugged sensors that offer exceptional value with little or no maintenance. The type 2536 has a process-ready open collector signal with a wide dynamic flow range of 0.1 to 6 m/s (0.3 to 20 ft/s). The sensor measures liquid flow rates in full pipes and can be used in low pressure systems. This type of sensor is highly versatile and chemically compatible to many liquid process solutions.

Sensors can be installed in DN15 to DN900 (1/2 to 36 in.) pipes, using GF 's comprehensive line of custom fittings. These custom fittings, which include tees, saddles, and weldolets, seat the sensor to the proper insertion depth into the process flow.

Features:

• Operating range 0.1 to 6 m/s (0.3 to 20 ft/s)
• Wide turndown ratio of 66:1
• Open-collector output
• Highly repeatable output
• Simple, economical design
• Installs into pipe sizes DN15 to DN900 (1/2 to 36 in.)
• High resolution and noise immunity
• Chemically resistant materials

Applications:

• Pure Water Production
• Filtration Systems
• Chemical Production
• Liquid Delivery Systems
• Pump Protection
• Scrubber/Gas Stacks
• Gravity Feed Lines
• Not suitable for gas
• Sodium Hypochlorite transfer/injection/batching (3-2536-G0)

For more information, please see Data Sheet
