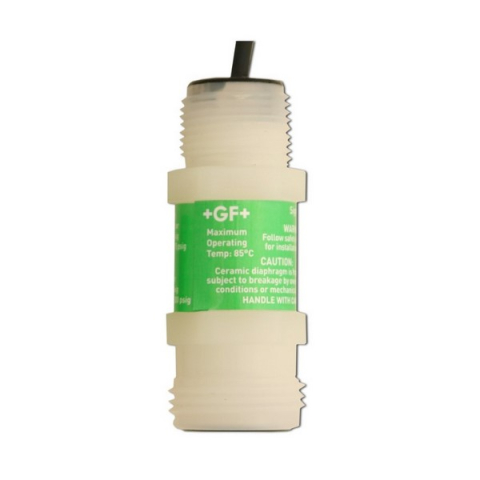

GF Piping Systems 3-2450-7H-025 Type 2450 Pressure Sensor 4-20 mA Output 1/2" Male Union 250 psi (25 ft Cable)

The type 2450 Pressure Sensor has a one-piece injection molded PVDF body and ceramic diaphragm for superior compatibility in corrosive liquids. These sensors allow for optimal resolution matched to your sensing needs. Solid state circuitry eliminates drift (no internal potentiometers).

These sensors have a field-scaleable 4 to 20 mA output. Dual-threaded ends allow submersion in process vessels or in-line installation with conduit connection, Integral adapters (sold separately) may be used to create a compact assembly with a field mount style of the GF 9900 Transmitter.

Features:

• Test certificate included
• 4 to 20 mA output
• 1/2 in. male union process connection
• One-piece injection molded PVDF body
• Flush ceramic diaphragm
• Easy installation
• Choice of three pressure ranges
• Pressure or level measurement
• NEMA 4X/IP65 rated when using the 3-8052-1

Applications:

• HVAC
• Scrubber Systems
• Pump Protection
• Water Management
• Irrigation Systems
• Wastewater
• Chemical Processing
• Pressure Regulation/Monitoring

For more information, please see Data Sheet
