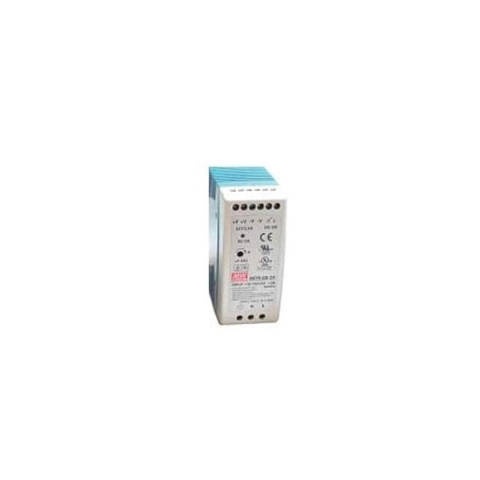

GF Piping Systems 7310-7024 Power Supply, 24 VDC, 96W, 4.0A

Signet 7310 Switching Power Supplies provide regulated output voltage in compact and lightweight plastic housings for DIN Rail mounting. These units meet the power requirements for a single system, multiple Signet instruments or other devices requiring 24 VDC operation.

Features:

• Universal AC input/Full range
• Protections: Short circuit/Overload/Over voltage
• Cooling by free air convection
• Install on DIN rail TS-35/7.5 or 15
• NEC class 2/LPS compliant
• Built in DC OK active signal
• LED indicator for power on
• No load power consumption < 1W for 7310-7024 and < 0.75W for others
• 100% full load burn-in test

Compatibility:

• Signet Instruments
• Electromagnetic Flow Sensors
• Suitable for Electric Actuated Valves, including Solenoid
• Suitable for powering passive outputs and relays

Note:

• All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 °C of ambient temperature.
• Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
• Tolerance : includes set up tolerance, line regulation and load regulation.
• The power supply is considered a component which will be installed into a fi nal equipment. The fi nal equipment must be re-confi rmed that it still meets EMC directives.
• Length of set up time is measured at cold fi rst start. Turning ON/OFF the power supply may lead to increase of the set up time.
