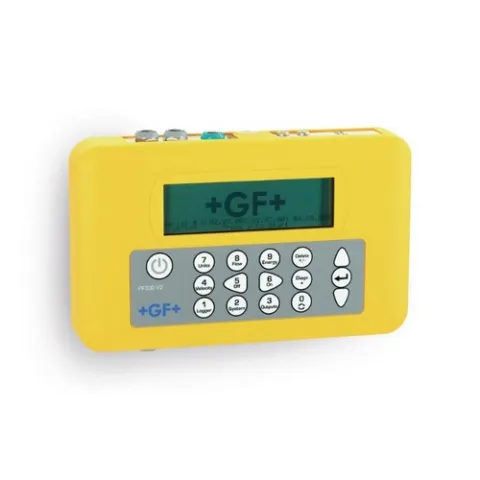

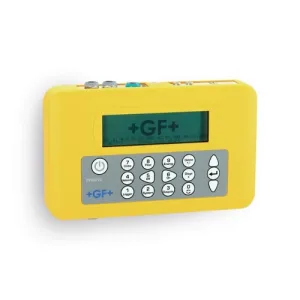

GF Piping Systems 159300363 GF PF330 V2 Portable Ultrasonic Flowmeter, Type A, 1/2"- 4" Pipe O. D., Battery & External 110/240 VAC

The Portaflow range brings simplicity to the non-invasive measurement of liquid flow. Portaflow offers the user quick and accurate flow measurement with its easy to follow menu and simple set up. Results can be achieved within minutes of opening the case. Compact, rugged and reliable, the Portaflow range has been designed to provide sustained performance in industrial environments.

The GF PF330 V2 Portable Ultrasonic Flowmeter range is designed for temporary or semi-stationary use.

The flowmeter range enables enable easy, simple & accurate flow measurement on virtually any pipe. Including PVDF-ABS, PVC, PP, PE, PB-Instaflex, iron and steel pipes. Measurements can be viewed directly on-site with the large graphic display. One 4-20 mA output and three individually configurable pulse outputs enable easy integration into higher-level systems.

The 'Clamp-On' concept makes the installation of the sensors in running systems possible. The pipe does not have to be opened. Compact, rugged and reliable - the GF PF330 V2 portable ultrasonic flowmeters have been designed to provide sustained performance in industrial environments.

Features:

• Large, easy to read graphic display with backlighting
• Easy to install with 'Clamp-On' design
• Datalogger option (up to 100 million datapoints) (PF330 version)
• USB port for easy data export (PF330 version)
• Analog, pulse & alarm outputs
• Battery lifetime up to 14 hours
• Compatible with almost all pipe types

Applications:

• Potable Water
• River Water
• Cooling Water
• Demineralized Water
• Water/Glycol Solutions
• Chemicals
• Leak Detection
• Boiler Testing

For more information, please see Data Sheet
