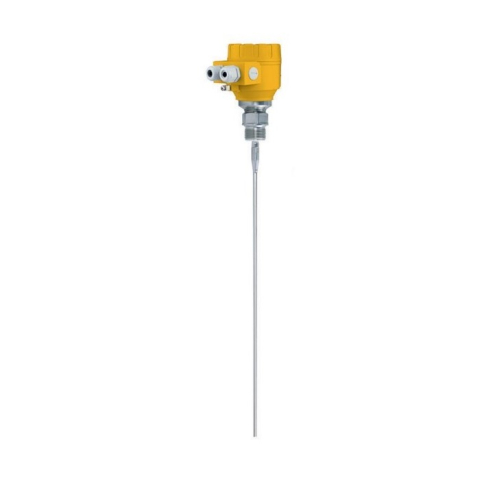

GF Piping Systems 2291-S-1DN1-6-R 2291 TDR Level Transmitter, LCD, PBT Housing, 1" NPT, SS316 Titanium

The 2291 Guided Wave Radar level transmitter is designed for continuous level measuring of conductive or non-conductive liquids, pulps and solids. The 2291 level gauge operates based on the well-known TDR (Time Domain Reflectometry) principle. Micropulses are sent along a probe guide at the speed of light. As soon as the impulse reaches the surface of the medium, it is reflected back to the electronic module. Level distance is directly proportional to the flight time of the impulse.

Applications:

• Inventory Tanks
• Day Tanks
• Process Vessels for Mixing & Batching
• Bypass Applications (requires calibration)
• Stilling-wells
• Powders
• Slightly Conductive Foams
• Low Dielectric Constant Liquids
