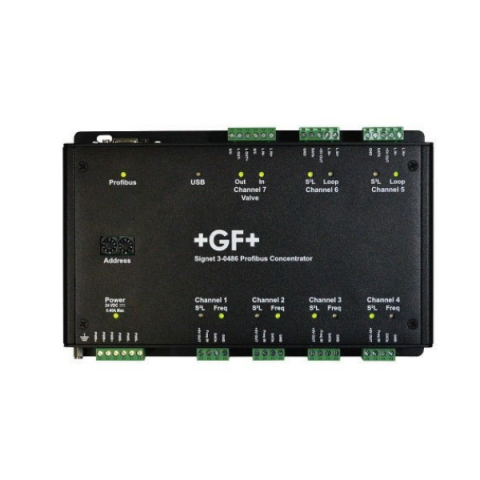

GF Piping Systems 3-0486-D DB9 Profibus Concentrator

The 0486 sensor interfaces are multifunctional. All six inputs are compatible with Signet digital (S3 L) sensors, four inputs are compatible with frequency output flow sensors, and two inputs are compatible with 4 to 20 mA current loops. The 0486 PLC interface allows for complete control of the Signet sensors. The programmer is able to confi gure the sensor for the specifi c needs of their application, read measurements in engineering units, and gather diagnostic data to ensure accuracy and correctness of readings.

Features:

• Interface six Signet sensor or relay modules and a proportional valve to a PROFIBUS network with a single service
• Four channels support (S*3 L) or flow frequency devices
• Two channels support (S*3 L) or 4 to 20 mA current loops
• One channel for dedicated 4 to 20 mA current loop input and output. Ideal for proportional valve control or other current loop uses
• Support for PROFIBUS DP V1 and DP V0
• Supports 9.6K to 12M bits/second network speeds
• System and sensor diagnostic support (DP V1)
• Fail-safe for 8059 Relay Modules and proportional valve outputs on communication failure
• Simplifi es the programming of sensors, saving programming time and reducing errors
• Convenient DIN Rail or surface mountable enclosure

Applications:

• Automation Upgrades
• Filter and RO Skids
• Neutralization Systems
• Water and Wastewater Treatment
• Pool and Spa Control
• Aquatic Animal Life Support Systems and Aquaculture
