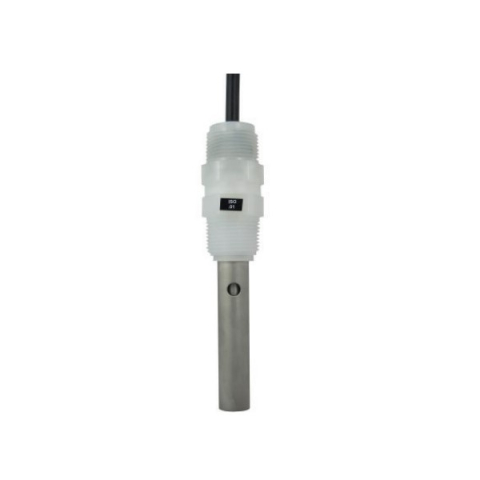

GF Piping Systems 3-2839-1VD Conductivity Electrode, 0.01 cm-1, ISO 7/1-R 3/4

The Signet Conductivity/ Resistivity Electrodes are suitable for a wide variety of applications from high purity water quality monitoring to weak acids and bases. 316 SS electrode surface fi nishes are controlled in a precision bead blasting operation to ensure measurement accuracy and repeatability.

The PVDF insulator and process connections are injection over-molded to minimize variance between electrodes. Double threaded connections enable quick and easy installation in submersible or in-line configurations. Transmitter integral mounting kit and junction boxes are available as accessories.

Features:

• +/- 2% accuracy - Custom calibration certifi cate provided
• Dual-threaded
• Compact electrode length for easy in-line installation in small pipe sizes
• Triple orifice flow-through design reduces clogging and bubble entrapment
• 316 SS electrodes with injection molded PVDF process connections and insulators
• Meets USP requirements

Applications:

• Water Treatment & Water Quality Monitoring
• Reverse Osmosis
• Deionization
• Cooling Tower and Boiler Protection
• Distillation
• Desalination
• Demineralizer
• Semiconductor
• Aquatic Animal Life Support Systems
