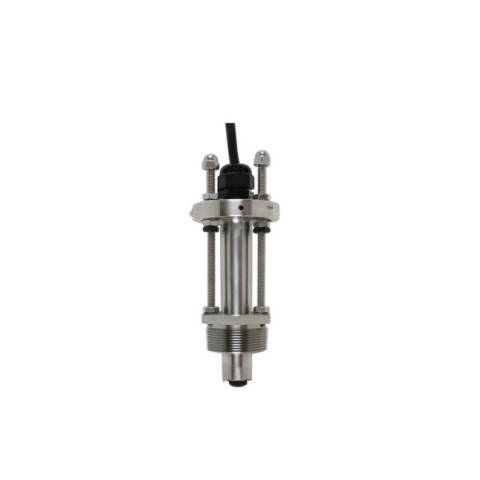

GF Piping Systems 3-2540-2S Stainless Steel High Performance Flow Sensor, 1.5" ISO, SS Pin

The Signet 2540 Paddlewheel Flow Sensor off ers the strength and corrosion resistance of stainless steel for liquid applications with low velocity measurements. Unique internal circuitry eliminates the need for magnets in the process fl uid, enabling flow measurement of 0.1 to 6 m/s (0.3 to 20 ft/s) while maintaining the advantages of insertion sensor design. Ultrafl on 500C bearings and Tungsten Carbide pin provide exceptional wear resistance.

Features:

• Operating range 0.1 to 6 m/s (0.3 to 20 ft/s)
• Field replaceable electronics
• Non-magnetic RF detection
• Standard ISO process connections
• Hot-tap versions for installation/service without system shutdown
• Adjustable sensor - one size for entire pipe range
• 7.6 m (25 ft) cable

Applications:

• HVAC
• Turf Irrigation
• Cooling Systems
• Filtration Systems
• Water Distribution
• Leak Detection
• Pump Protection
• Clarifi ed Effl uent Totalization
• Ground Water Remediation
• Gravity Feed Line
