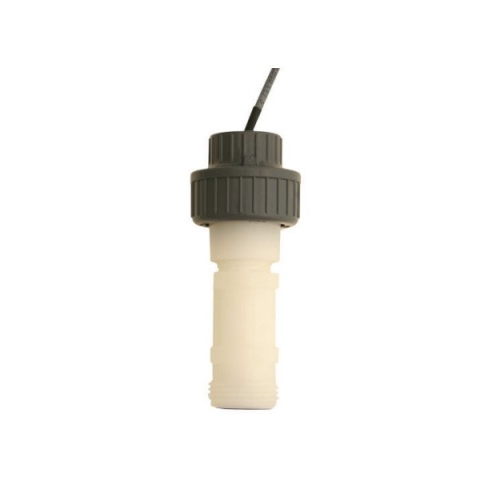

GF Piping Systems 3-2250-21L-1 Submersible Hydrostatic Pressure Sensor, 3.4 bar (50 psi), Metric Pipe Union

The Signet 2250 Hydrostatic Level Sensor for level and depth control has a one-piece injection molded PVDF body and ceramic diaphragm for superior compatibility in corrosive liquids. Utilizing hydrostatic pressure, the 2250 disregards false level signals from steam vapors, foam or any other debris on the liquid surface. Two pressure ranges allow for optimal resolution matched to your sensing needs. Solid state circuitry eliminates drift (no internal potentiometers). The extended cable and capillary tubing with the union connection and a customer supplied conduit, allow submersion in process vessels.

Features:

• Level and depth measurement
• 4 to 20 mA output
• Flush ceramic diaphragm
• Easy submersible installation
• Choice of two pressure ranges
• Standard union connection and extended cable and capillary tubing (10 m)

Applications:

• Inventory Management
• Storage Tank Monitoring
• Neutralization Tanks
• Plating Lines
• Waste Sumps
• Clarifi ers
• Overflow Protection
