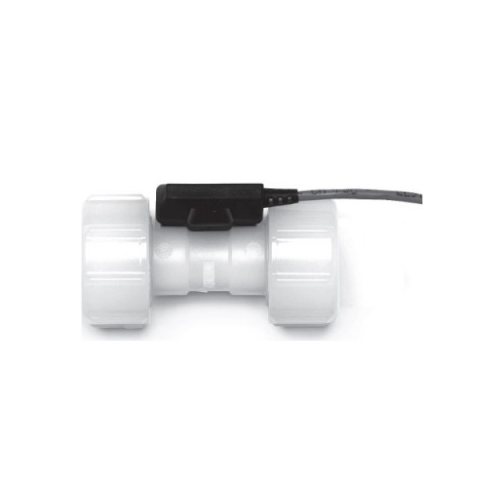

GF Piping Systems 3-2100-1L Turbine Flow Sensor PVDF/FPM, Low, 0.38 to 3.8 lpm (0.10 to 1 gpm)

Engineered specifi cally for small pipe diameter applications, the Signet 2100 Turbine Flow Sensor provides accurate readings in two flow ranges: 0.3 to 3.8 lpm and 3 to 38 lpm (0.1 to 1 gpm and 0.8 to 10 gpm). The injection-molded PVDF body and ceramic bearings provide excellent chemical compatibility and long service in dosing and batching applications.

Features:

• Operating range of 0.38 to 38 lpm (0.10 to 10 U.S. gpm)
• Non-magnetic turbine
• Union ends for various connector types
• End connector kits for rigid or fl exible tubing or DN15 (1/2 in.) pipe
• PVDF & ceramic wetted parts provide superior chemical compatibility
• For use with both clear and opaque fl uids
• Small and compact design
• 4.6 m (15 ft) cable
• Features removable electronics that installs

Applications:

• Chemical Addition
• Textile Dyeing
• High-purity Chemical Dispensing
• Water Addition
• Fertigation
• Dosing
• Pump Protection
• Not suitable for gases
