Overview

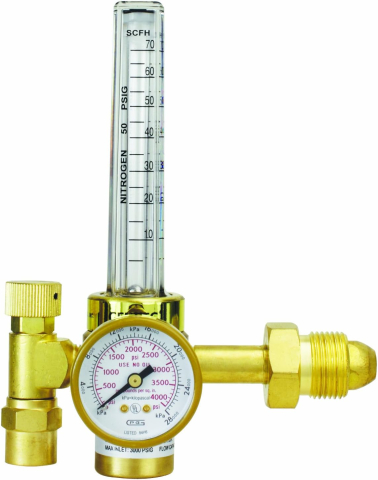

Flowmeter Regulator, 1 Piece, Piston Type, Nitrogen GCA580
Model 191 Series Flowmeter Regulators are designed for MIG &TIG applications to provide accurate regulation of gas flow.They are also ideal for commercial, industrial and laboratorial applications.
Features:
- Combination of regulator and flowmeter as one compact unit
- Regulator is preset at 50PSIG
- Piston-type construction
- Body machined from class "A" brass
- Internal pressure relief valve
- Polycarbonate flow tube and hood are impact resistant for maximum durability and service life
- Backpressure compensated to ensure accurate readings when line restrictions are present
- Sintered bronze inlet filter
- Comes with 5/8"-18RH Female fitting (with the attached Adaptor) and 9/16"-18RH
- Weight: 1 lbs 10 oz
- Conforms to CGA E-4 Standard for Gas Pressure Regulators
