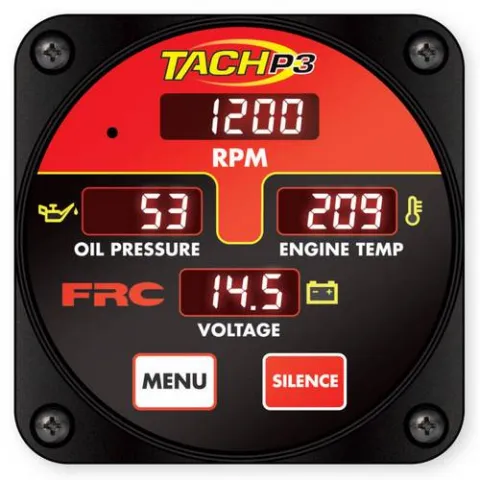

FRC TPA600-A00 TACHP3 Engine Monitoring Display, J1939, ISO11898

The Engine Monitoring Display is an all-in-one instrument panel with integrated monitoring and display capabilities that saves valuable pump panel space. It combines four different instruments in one waterproof unit. It provides both audible and visual warning alarms if specified parameters go outside of set limits.

The Engine Monitoring Display has a 4-digit LED display for engine RPM and 3-digit LED displays for engine oil pressure, engine coolant temperature and battery voltage. During normal operation warning messages are displayed as they occur.

Features:

• J1939 or ISO CAN Bus for Engine Information.
• Digital Engine RPM, Engine Oil Pressure.
• Engine Coolant Temperature and Battery.
• Voltage Displays.
• Easy to Install, No Panel Cut-Out Needed.
• Built-in Diagnostics.
• Programmable Audible and Visual Warnings.
• Low and Over Voltage Warnings.
• Programmable Unit-of-Measure choose psi / kPa / BAR or °F / °C

TACH P3 receives engine information via the J1939 or ISO CAN bus.

STANDARD KIT includes display module, audible alarm buzzer, and cables.

For more information, please see Manual
