FRC TCA108-B50 TotalControl Pressure Governor, Engine Monitoring & Master Pressure Display, Scania PRT, Bar 24V

The all-in-one pressure governor and instrument panel uses state-of-the-art programmable, microprocessor technology. It maintains a steady pump discharge pressure by controlling engine speed or holds a selected engine RPM. It offers complete engine control and remote display in a single compact unit.

The governor operates in one of two modes, pressure or RPM. In pressure mode it maintains a constant pump discharge pressure. The discharge pressure is monitored, compared to the selected pressure setting, and the engine RPM is varied to keep the discharge pressure at the selected setting. In RPM mode it maintains a constant engine RPM. The pump discharge pressure is monitored and can vary, but, as a safety feature, it will be limited to an increase of 30 PSI. If the discharge pressure increases 30 PSI the governor automatically lowers the engine RPM to prevent a high pressure surge.

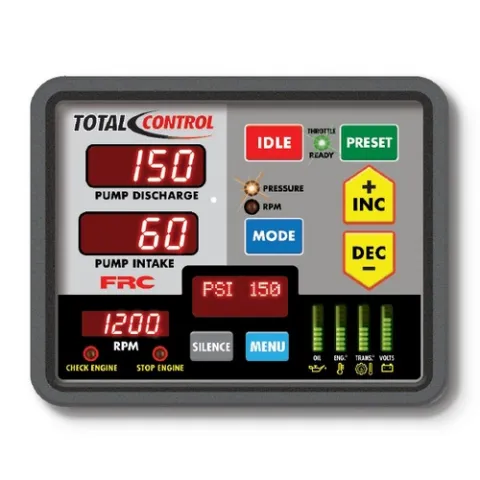

The panel has three 4-digit LED displays for pump discharge, pump intake, and engine RPM. The message display shows pressure and RPM settings; fault and error code information; detailed engine data and program features. There are four LED bar graphs that provide a constant display of the safe operating ranges for engine oil pressure, engine coolant temperature, transmission temperature, and battery voltage. (For detailed information with the exact numbers and units of measure the MENU button is pressed.)

All controls and indicators are located on the front of the control module.

TOTALCONTROL receives engine information via the J1939 or ISO CAN bus.

Features:

• J1939 CAN Bus for Engine Information and Control
• Power Up in Pressure Mode
• Automatic Regulation of Pump Discharge Pressure
• Manual Control of Pressure or Engine RPM Settings
• Programmable Presets
• Diagnostic Capabilities
• No Pressure or RPM Variation When Changing Modes
• Limits Increase of Pressure When in RPM Mode
• Recognition of No Water Condition with Automatic Response
• Interlock Signal Recognition with Throttle Ready LED
• Return to Engine Idle with the Push of a Button
• Display Brightness Automatically Adjusts for Day or Night Operation
• kPa, Bar, °C Options
• Remote Governor Option

For more information, please see Manual
