Overview

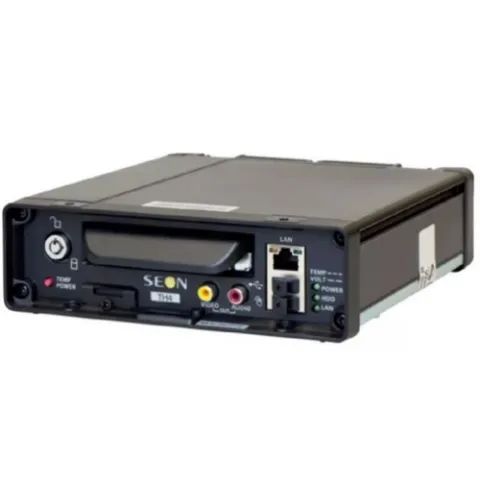

An FRC, powered by SEON, model SNB242-A00 inView™ Guardian System kit has a 4-channel HD Hybrid (supports HD or analog) video surveillance system that records up to (4) four high-definition camera (selectable camera resolution up to 720p) views, while offering the flexibility to support existing standard resolution (analog) cameras. Recording Rate on the Main Stream is 30 FPS on all video channels (120 FPS aggregate). Recording Rate for the second Stream is 1-5 FPS independent of the main stream. The video resolution is 1280 x 720 (720p) up to 4 channels for the main stream, 720 x 480 (D1) for up to 4 channels for the main stream. The DVR features dual streaming (hi/low resolution) technology that records (2) two information streams. It is capable of sending low-bandwidth video images live over an optional broadband (cellular) network.
The DVR supports frame advance, FFD (fast-forward) and REV (Reverse) playback for up to 32X. It supports geo-fencing capability, which delivers alerts when a vehicle deviates from a geographic boundary. The DVR includes a GPS sensor for recording the vehicle speed and location. The DVR also includes a Diagnostic button for manually recording, and the ability to mark events to easily search through the data while reviewing footage. It includes a G-Sensor (accelerometer), which detects when the vehicle has an unexpected change in direction or acceleration.
The DVR has Smart-Temp technology to provide automatic monitoring of the DVR operational temperature and ensure it stays within optimal range. The DVR has a Configuration Backup, which retains the time (date stamp) and programmed information up to 10 years. It has Smart-Start technology with vehicle start-up voltage protection to ensure the DVR is safeguarded against electrical spikes. The DVR operates from 8 to 32 VDC, has transient protection for 600 W for power input, and has 400W per signal input. It meets FCC emissions requirements. The DVR is tested in accordance with SAE-1455 and MIL-STD 810 for vibration.
