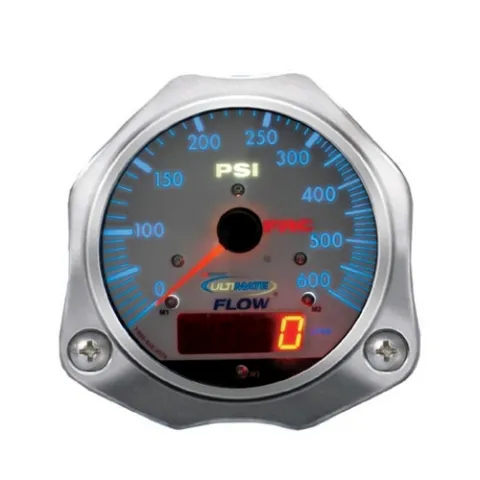

FRC FPA402-030 Insight Ultimate Flowmeter Backlit, 3" Pipe, GPM/PSI

The INSIGHT ULTIMATE digital flowmeter and pressure indicator combines a digital LED flow display and a traditional style electronic pressure indicator into one practical display module. The flowmeter/pressure indicator is able to communicate with other display modules over the FRC datalink. This technology allows for remote displays, the display of flow for multiple discharges (summing), and the totalization of flow for multiple discharges (accumulation).

The digital flowmeter is a 4-digit LED display. During normal operation flow rate information is provided from a paddlewheel flow sensor or the datalink interface. This information is processed and shown on the digital display as flow rate.

The pressure indicator is an electronically controlled analog display. During normal operation pressure information is provided from a solid state pressure sensor or the datalink interface. The pressure sensor provides an electrical signal to the input of the display module. A microprocessor controls the needle movement to provide an accurate and steady pressure display. Leakage and freeze-up problems common in mechanical pressure gauges are eliminated.

There are two operator selectable modes; display module identification and program access. The digital display is used to show stored data or operator inputs when a selectable mode is accessed. In the display module identification mode the digital display will show the module serial number, manufactured date, software revision, module function, and ID number. In the program access mode the digital display will show operator inputs, program options, and error codes. The operator selected modes are accessed and inputs are made by using the three magnet sensors on the front of the display module.

All controls and indicators are located on the front of the display module.

Features:

• Easy Calibration from Front of meter.
• Simplifies Installation.
• Brightest Readout Possible is Easy to See Under All Conditions.
• NFPA Colored Bezels Help Eliminate Mistakes.
• FRC Datalink Allows for Remote Displays.
• Photo Sensor Detects Ambient Light so the Unit Automatically Adjusts the LED Intensity for Day or Night Operation.
• Backlighting

Insight Ultimate

STANDARD KIT includes display module, flow sensor with mount, pressure sensor, and cables.

For more information, please see Manual
