FRC FDA700-105 Frog-D Generator Display, 3 Phase, for Generators with Delta Windings, 60 Hz, 105 kW

The three phase generator output display panel is rated for 50/60 Hz generators with delta windings.

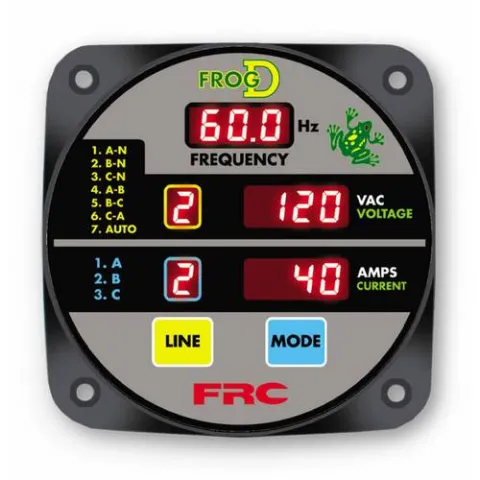

The display module has ultra-brite LEDs that show the generator frequency, voltage, and current. When the generator is off line the display shows total accumulated generator hours.

The signal interface module is mounted close to the current sensors and voltage transformers so that cable runs are short. Current and voltage information is passed to the display module over a two wire datalink.

Built in safety features include voltage fluctuation, current overload and high temperature warnings.

The three phase signal interface module is mounted close to the current sensors and voltage transformers so that cable runs are short.

Current and voltage information is passed to the display module over a two-wire datalink.

Features:

• Displays Frequency, Line Voltage (Phase to Neutral or Phase to Phase), and Current on Each Line
• Monitor Each Line Individually or Scan All Lines Continuously
• Rated for 50/60 Hz generators
• Generator Hourmeter
• Built-in Warning for Current Overloads, Voltage Fluctuations, and High Hydraulic Oil Temperature
• Optional Hydraulic Oil Temperature Sensor and Audible Alarm

STANDARD KIT includes:

• Three Phase - display module, signal interface module, 3 current sensors, 3 AC voltage transformers, & cables.

For more information, please see Manual
