FRC FCA800-V11 Evolution II Lamphead, 11000 Lumens, Brow, Contour Mount

EVOLUTION II low profile LED lampheads generate up to 20,000 lumens of ultra bright white light. The unique LED arrays and lens produce more usable light in a compact lamphead.

Features:

• Sure-grip molded handle
• Ultrabright LED Arrays
• Advanced lens design focuses 100% of the led light directly where it is needed most
• Unbalanced knob design reduces the chance of loosening up In route
• Thicker, reinforced mounting knuckle
• Brighter Light - Up to 20,000 lumens of ultra bright led light
• Whiter Light - Closest thing to natural sunlight
• Uniform high quality white light with the widest light pattern
• Long Operating Hours - Rated at 50,000 hours
• Parabolic reflector and lens designed to direct all the light onto the scene
• Lamphead can be used with 12 or 24 volt DC systems (13/6.5 amps)
• Full Brightness at Power On - Instant restarts

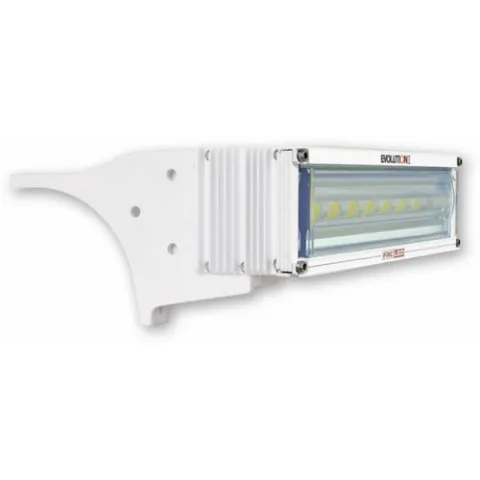

Fire Research Evolution II model with contour roof mount. The mounting brackets attach to the bottom of the lamphead and be machined to conform to the roof radius. Wiring extends from a weatherproof strain relief at the rear of the lamphead.

The lamphead has four (4) ultra-bright white LEDs. It operates at 12/24 volts DC, draws 7.5/3.75 amps, and generates 11,000 lumens. The lamphead directs 50 percent of the light onto the action area while providing 50 percent to illuminate the working area. The lamphead angle of elevation is adjustable at a pivot in the mounting arm and the position locked with a round knurled locking knob. The lamphead incorporates heat-dissipating fins and be no more than 5-3/16" deep by 3-5/16" high by 7-5/8" wide. Lamphead and brackets are powder coated white. The floodlight is for fire service use.
