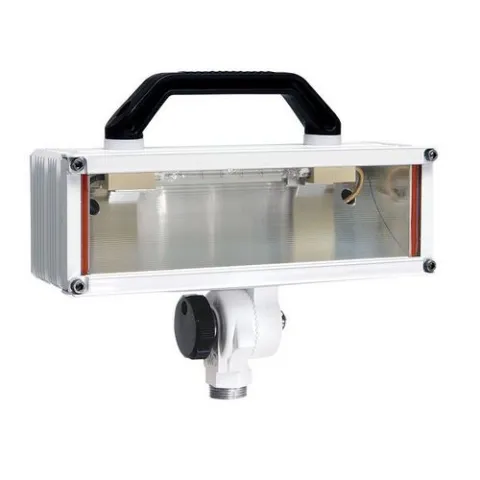

FRC FCA100-M10-ON Focus Low Profile Lamphead, 1000W, 120V, Lamphead with On/Off Switch

Don't waste precious light

The high intensity FOCUS lamphead uses a uniquely designed patented reflector to eliminate wasted light. It is designed to focus 100% of the light produced into the area where it is needed. Built tough, the compact design allows it to be mounted in places that traditional lighting fixtures do not fit.

FOCUS low profile lampheads were the first lampheads to introduce the concept of redirecting light with fifty parabolic curved and aimed surfaces. The innovative design directs light where it is needed. The low profile of the classic FOCUS offers mounting options that many other lights cannot.

The lamphead mounting arm terminates in 3/4" NPT threads. Wiring extends from the lamphead mounting arm bottom.

The lamphead has one (1) quartz halogen bulb. The bulb is accessible through the front. The lamphead directs 50 percent of the light onto the action area while providing 50 percent to illuminate the working area. The lamphead angle of elevation is adjustable at a pivot in the mounting arm and the position locked with a round knurled locking knob. The lamphead incorporates heat-dissipating fins and be no more than 5-1/4" deep by 3-3/8" high by 15" wide. Lamphead and mounting arm is powder coated white. The floodlight is UL listed as a scene light for fire service use.
