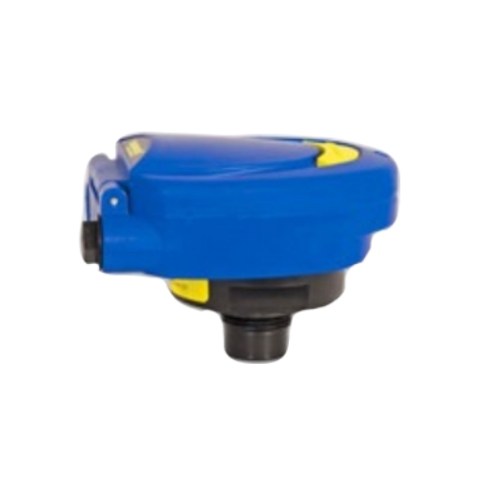

Flowline LU80-5101 EchoSpan Ultrasonic Liquid Level Sensor Transmitter 3m (9.8') Range, 1" NPT

The general purpose ultrasonic transmitter provides continuous level measurement up to 32.8' (10m) with a 4-20 mA signal output, and is configured via its integral push button display module. This non-contact liquid level sensor is well suited for corrosive, ultrapure, sticky or waste liquids, and is selected for bulk storage, tanker truck and neutralization tank applications.

Features:

• Offered in 4 measurement ranges from 9.8' (3m) to 32.8' (10m)
• Configuration is simple via integral push button display module
• LCD display indicates level in inches, centimeters and percentages
• Narrow 2" or 3" beam width for applications with limited measurement space
• Fail-safe intelligence and diagnostic feedback for simple troubleshooting
• PVDF transducer and NEMA 4X polycarbonate enclosure for corrosive liquids
• Automatic temperature compensation for accurate measurement
