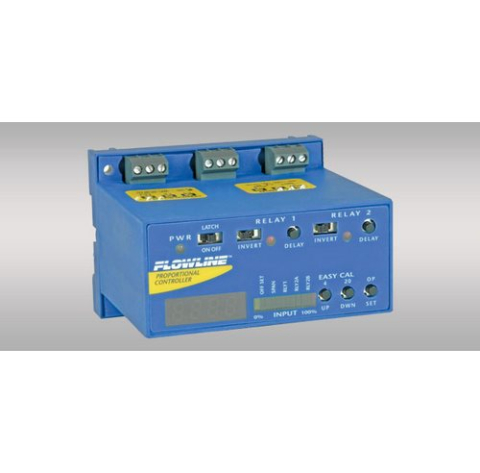

Flowline LC52-1001 DataPoint Level Controller Remote Relay

The general purpose AC powered tank or silo level controller displays engineering units with one 4-20 mA level transmitter, two programmable relays and an isolated 4-20 mA repeater. Relay one is configurable on a single set point. Relay two can be configured on a single set point or latched on two set points for automatic fill or empty control in simplex mode. Select this DIN rail mount controller for use with general purpose two or three-wire level sensors. For field mount installation, add a single or double NEMA box with optional flash and/or audible alarm.

Features:

• Bright LED display indicates level in custom engineering units
• Fail-safe relay control of pumps or valves with 0-60 second delay
• Easy push button configuration of span, display and relay set points
• 35 mm DIN rail mount PP enclosure with removable terminal strips
• Invert switch changes relay state from NO to NC without rewiring
• Bar graph display indicates the percentage of measured span
• Available with NEMA boxes and tank alarm accessories
