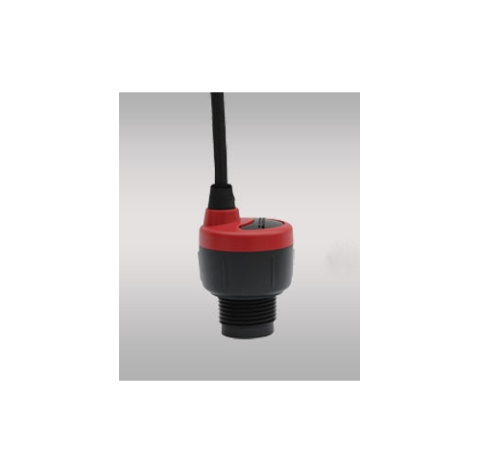

Flowline DS14-00 EchoPod Ultrasonic Level Switch & Controller 1.25m (49.2") Range, 1" NPT, 4 SPST Relays, w/o Fob

The general purpose ultrasonic level switch provides continuous level detection up to 49.2" (1.25m) with 4 programmable relays for level switch or level control functions, and is configured via free WebCal software. The embedded level controller can lower cost by replacing external control hardware. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids, and is broadly selected for small day tank, skid, IBC, sump and process tank level applications.

Features:

• Level detection, switch and control functions up to 49.2" (1.25m)
• Configuration is fast and easy via WebCal software and USB adapter
• Narrow 2" beam width and short 2" dead band optimized for small tanks
• Four programmable relays for switch, pump or valve control and fail-safety
  • 1 pump or valve with 3 alarms
  • 2 pumps lead-lag with 2 alarms
  • 2 pumps duplexing with 2 alarms
  • 4 independent switch point alarms
• PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
• Automatic temperature compensation for accurate measurement
