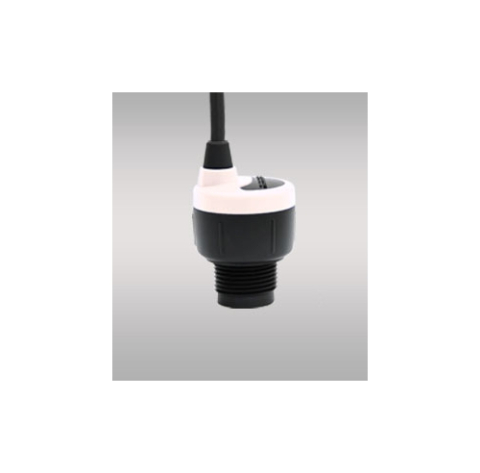

Flowline DL10-01 EchoPod Ultrasonic Liquid Level Sensor Transmitter 1.25m (49.2") Range, 1" NPT, 4-20mA, w/Fob
- Specification
- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews
Click to zoom
Overview
The general purpose ultrasonic level transmitter provides continuous level measurement up to 49.2" (1.25m) with a 4-20 mA signal output, and is configured via WebCal software. Select this sensor for small tanks with non-foaming, non-condensing or highly vaporous media such as chemical, water, wastewater and oil. Typical applications include chemical feed, skid or machine, IBC or drum and small waste sumps.
Features:
- Continuous non-contact level measurement up to 49.2" (1.25m)
- 4-20 mA output for longer signal distances up to 1000' (300m)
- Configuration is fast and easy via WebCal software and USB adapter
- Narrow 2" beam width and short 2" dead band optimized for small tanks
- PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
- Automatic temperature compensation for accurate measurement
