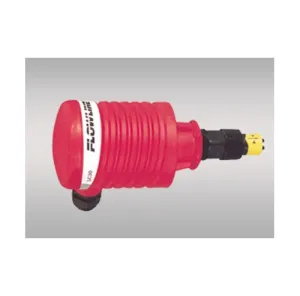

Flowline AT12-3624 Thermo-Flo with Compact Flow Controller Liquid, Short, PVDF, 3/4" G

Offered in liquid and gas sensor types, the general purpose flow switch package provides reliable no or low-flow detection of relatively clean non-coating media with a 16A compact flow controller for pump or process protection. Liquid examples includes water and sulfuric acid. The optional flash alarm brings attention to low-flow alarm conditions. Available in Polypropylene-Ryton^® and PVDF, the short flow sensor is used in pipe or ducting from 1/2” to 1-1/2”, and the long flow sensor is used in 2” and up. The flow switch set point may be adjusted from 0.04 to 3 fps in liquids, or 1 to 90 fps in gases for low-flow control. The flow sensor is best applied in applications with relatively constant temperature.

Features:

• Rugged PP-Ryton^® or PVDF sensor for corrosive liquids and gases
• Fail-safe relay control of pumps or valves with 0-60 second delay
• PP enclosure rated NEMA 4X with swivel base for conduit alignment
• Optional strobe brings immediate attention to flow alarm conditions
• Invert switch changes relay state from NO to NC without rewiring
• Solid state sensor is not damaged by over-ranging flow velocities
