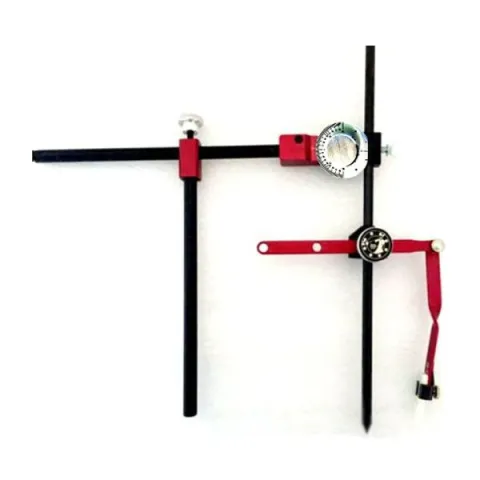

The Multi-Hole Imager – Tower will layout round or elongated holes (ellipse) on flat material or pipe to match laterals at compound angles or at 90 degrees. It marks up to 18″ saddle holes in pipe or flat plate.
