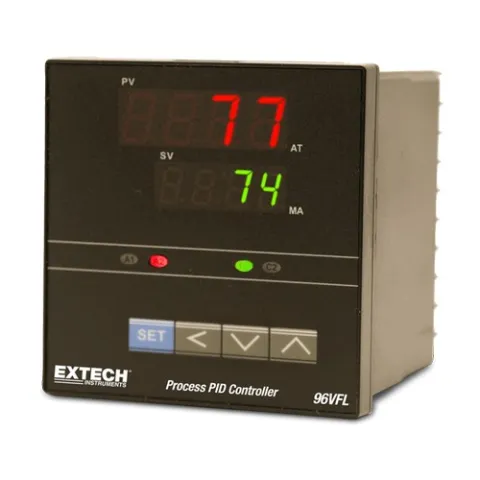

Extech 96VFL11 1/4 DIN Temperature PID Controller with Two Relay Outputs

The Extech 96VFL11 Temperature PID Controller offers fuzzy logic enhanced PID and a soft-start feature that protects heaters from cold-starts. PID plus fuzzy logic tackles even the most demanding applications, eliminating over-shoot, unwanted process fluctuations, and drift. The soft start feature is ideally suited for processes such as those employed in the Thermo-Plastics industry: where careful, exact, and slow heating of the product is required. Accepts thermocouple and RTD inputs. It includes single stage ramp and soak program with ramp-to-set point limit that can be combined with the soft start feature for critical process demands. Complete with mounting bracket hardware and screw terminals for easy wiring.

Features:

• Dual 4-digit LED displays for process and setpoint values
• Easy programming & navigation with user-friendly menus and tactile keypad
• Fuzzy Logic PID offers intuitive control simulating human control logic
• Manual mode allows the user to override automatic control and drive the controller output higher or lower with the touch of a button
• One-touch Auto Tuning for quick setup and stable, precise control
• Two ‘Latching' Alarm relays standard with 8 Alarm modes plus advanced Timer modes
• Single stage Ramp and Soak program with Ramp-to-Setpoint
• Limit that can be combined with the Soft Start feature for critical process demands
• Accepts thermocouple and RTD inputs
• Select desired temperature display units (°F or °C) from setup menu
• Select thermocouple input type (9 selections) or RTD input (2 selections) from the display menu without the need for hardware modification

For more information, please see Data Sheet
